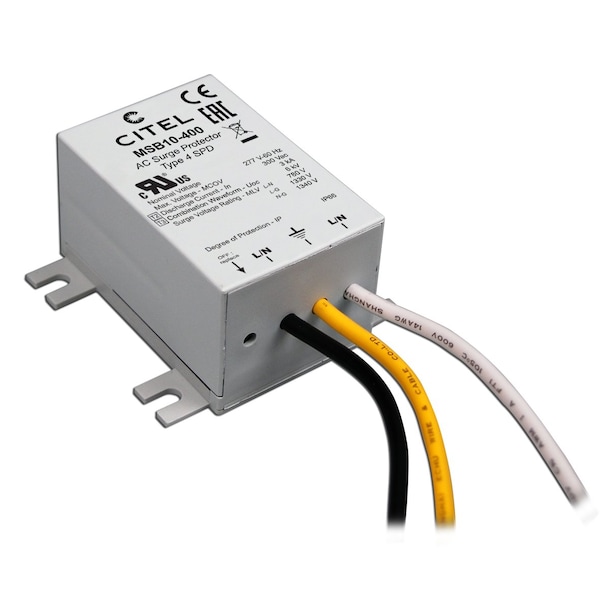

Surge Protection Device, 1 Phase, 277V, 2 Poles, 2 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Surface |
| Phase | 1 |
| Voltage | 277 V |
| Number of Poles | 2 |
| Number of Wires | 2 Wires |
| Modes of Protection | L-G, L-N, N-G, L-L |
| Max. Surge Current per Mode | 22 kA |
| Nominal Discharge Current | 10 kA |
| Max. Continuing Operating Voltage | 320V |
| IP Rating | IP67 |
| Enclosure Material | Thermoplastic |
| Length | 50 mm |
| Depth | 34 mm |
| Width | 40 mm |
| Standards | UL 1449 Type 4CA |
| Package Quantity | 1 |
