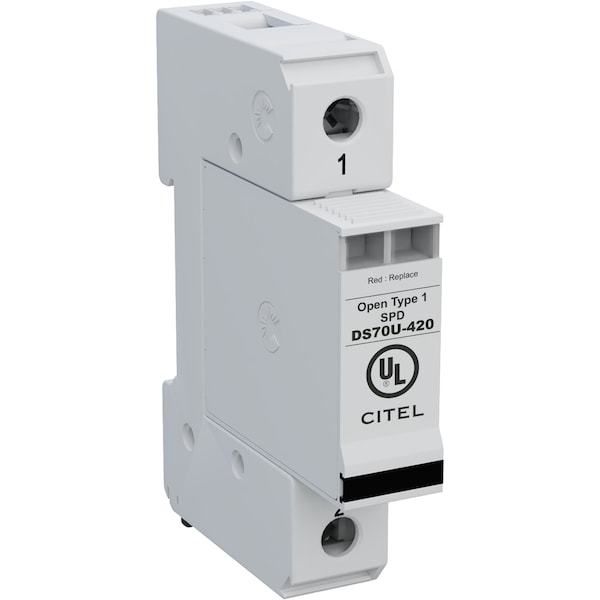

Surge Protection Device, 1 Phase, 277V, 2 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Din Rail |
| Phase | 1 |
| Voltage | 277 V |
| Voltage Protection Rating | 1500V |
| Number of Wires | 2 Wires |
| Modes of Protection | L-G |
| Max. Surge Current per Mode | 75 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Max. Continuing Operating Voltage | 420V |
| IP Rating | IP20 |
| Enclosure Material | Thermoplastic |
| Length | 90 mm |
| Depth | 18 mm |
| Width | 67 mm |
| Standards | UL 1449 Type 1 |
| Package Quantity | 1 |
