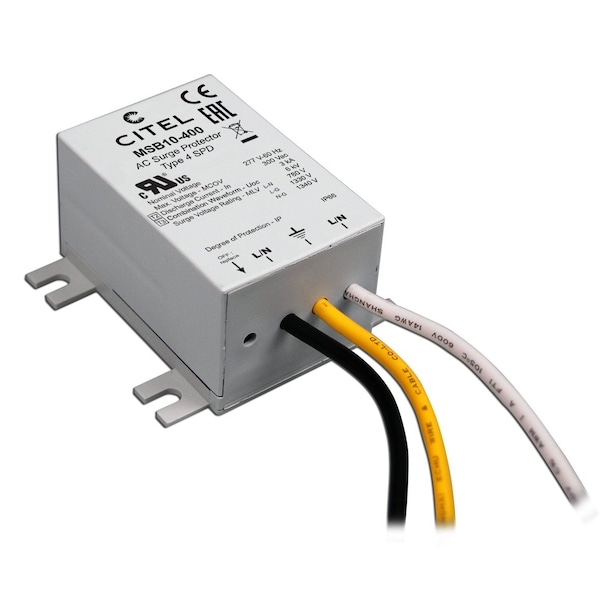

Surge Protection Device, 1 Phase, 277V, 2 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Flange |
| Phase | 1 |
| Voltage | 277 V |
| Number of Wires | 2 Wires |
| Modes of Protection | L-G, L-N, L-L |
| Max. Surge Current per Mode | 18 kA |
| Nominal Discharge Current | 3 kA |
| Max. Continuing Operating Voltage | 300V |
| IP Rating | IP67 |
| Enclosure Material | Thermoplastic |
| Length | 60 mm |
| Depth | 32 mm |
| Width | 40 mm |
| Standards | UL 1449 Type 4CA |
| Package Quantity | 1 |
