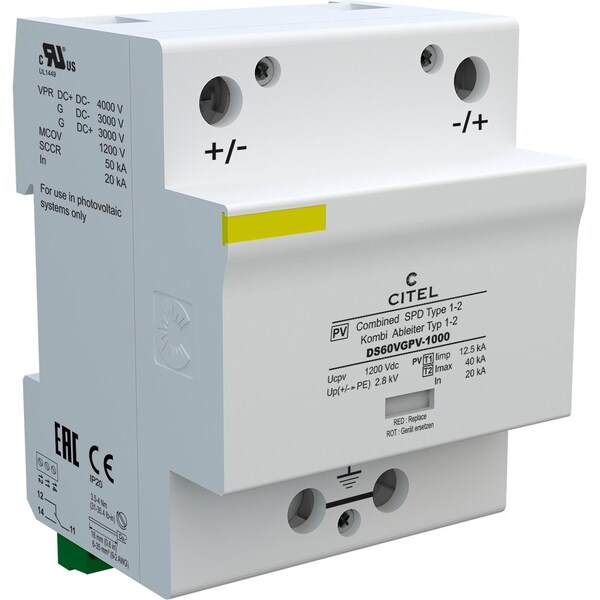

Surge Protection Device, 1000V, 2 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Din Rail |
| Voltage | 1,000 V |
| Voltage Protection Rating | 4000V/3000V/3000V |
| Number of Wires | 2 Wires |
| Modes of Protection | DC+-G, DC--G, DC+-DC- |
| Max. Surge Current per Mode | 40 kA |
| Nominal Discharge Current | 10 kA |
| IP Rating | IP20 |
| Enclosure Material | Thermoplastic |
| Length | 70 mm |
| Depth | 90 mm |
| Width | 90 mm |
| Standards | UL 1449 Type 1CA |
| Package Quantity | 1 |
