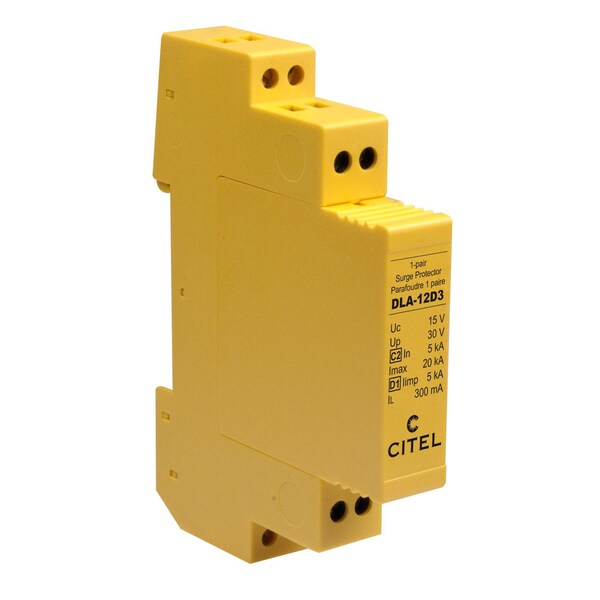

Surge Protection Device, 12V, 2 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | DIN RAIL |
| Voltage | 12 V |
| Number of Wires | 2 Wires |
| Max. Surge Current per Mode | 20 kA |
| Nominal Discharge Current | 5 kA |
| Modular | Yes |
| Filtering | Yes |
| Max. Continuing Operating Voltage | 15/72/72V |
| Enclosure NEMA Rating | NEMA 2 |
| IP Rating | IP20 |
| Enclosure Material | Thermoplastic |
| Length | 90 mm |
| Depth | 13 mm |
| Width | 65 mm |
| Standards | UL 497B |
| Package Quantity | 1 |
