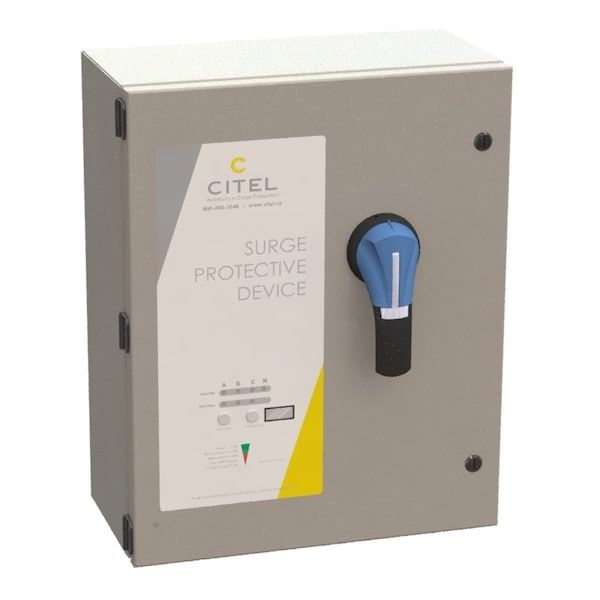

Surge Protection Device, 3 Phase, 120/240V, 4 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Flange |
| Phase | 3 |
| Voltage | 120/240V |
| Voltage Protection Rating | 3000V/1800V/1800V/3000V/3000V/1800V/1800V |
| Number of Wires | 4 Wires |
| Modes of Protection | L-G, L-N, N-G, L-L, H-G, H-N, H-L |
| Max. Surge Current per Mode | 375 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Filtering | Yes |
| Max. Continuing Operating Voltage | 840V/420V/420V/840V/840V/420V/420V |
| Enclosure NEMA Rating | NEMA 4, NEMA 12 |
| IP Rating | IP65 |
| Enclosure Material | Carbon Steel |
| Standards | UL1449 TYPE 1/2 |
| Package Quantity | 1 |
