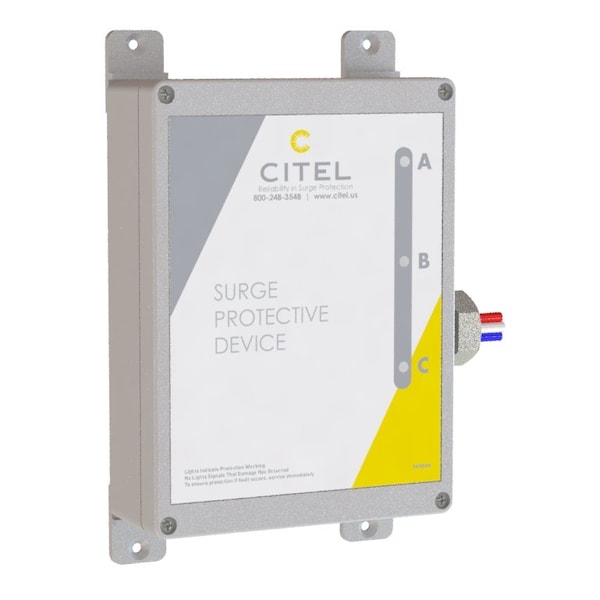

Surge Protection Device, 3 Phase, 240/480V, 4 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Flange |
| Phase | 3 |
| Voltage | 240/480V |
| Voltage Protection Rating | 1800V/1000V/1200V/1000V/3000V/1000V/1200V |
| Number of Wires | 4 Wires |
| Modes of Protection | L-G, L-N, N-G, L-L, H-G, H-N, H-L |
| Max. Surge Current per Mode | 192 kA |
| Nominal Discharge Current | 20 kA |
| Max. Continuing Operating Voltage | 690V/320V/320V/320V/870V550V/550V |
| Enclosure NEMA Rating | NEMA 4X |
| IP Rating | IP67 |
| Enclosure Material | Polycarbonate |
| Length | 200 mm |
| Depth | 55 mm |
| Width | 150 mm |
| Standards | UL 1449 TYPE 1 |
| Package Quantity | 1 |
