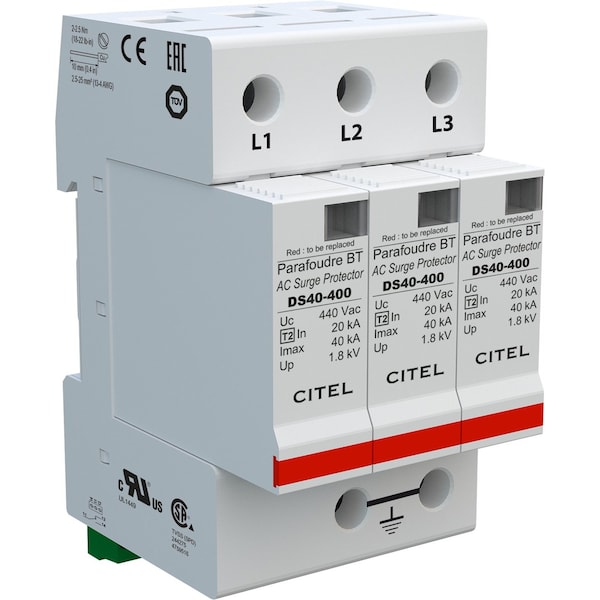

Surge Protection Device, 3 Phase, 480V, 3 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Din Rail |
| Phase | 3 |
| Voltage | 480 V |
| Voltage Protection Rating | 4000V/1800V |
| Number of Wires | 3 Wires |
| Modes of Protection | L-G, L-L |
| Max. Surge Current per Mode | 40 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 100 kA |
| Modular | Yes |
| Max. Continuing Operating Voltage | 550V |
| IP Rating | IP20 |
| Enclosure Material | Thermoplastic |
| Length | 90 mm |
| Depth | 54 mm |
| Width | 67 mm |
| Standards | UL 1449 Type 1 |
| Package Quantity | 1 |
