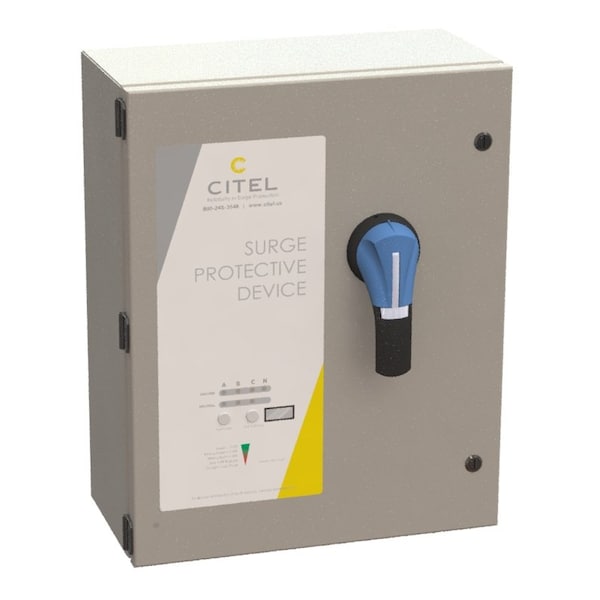

Surge Protection Device, 3 Phase, 480V, 3 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Flange |
| Phase | 3 |
| Voltage | 480 V |
| Voltage Protection Rating | 2000V/2000V |
| Number of Wires | 3 Wires |
| Modes of Protection | L-G, L-L |
| Max. Surge Current per Mode | 375 kA |
| Nominal Discharge Current | 20 kA |
| Short Circuit Current Rating | 200 kA |
| Filtering | Yes |
| Max. Continuing Operating Voltage | 550V |
| Enclosure NEMA Rating | NEMA 4, NEMA 12 |
| IP Rating | IP65 |
| Enclosure Material | Carbon Steel |
| Standards | UL1449 TYPE 1/2 |
| Package Quantity | 1 |
