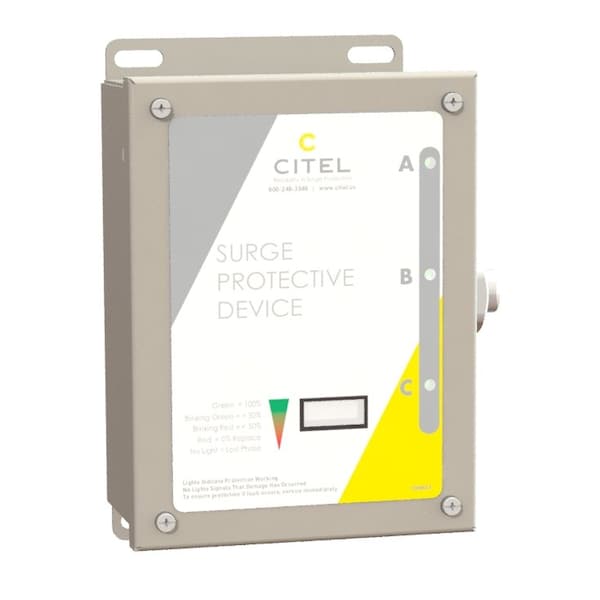

Surge Protection Device, 3 Phase, 480V, 3 Wires
| Item | Surge Protection Device |
|---|---|
| Mounting Style | Flange |
| Phase | 3 |
| Voltage | 480 V |
| Voltage Protection Rating | 3000V/1800V |
| Number of Wires | 3 Wires |
| Modes of Protection | L-G, L-L |
| Max. Surge Current per Mode | 132 kA |
| Nominal Discharge Current | 20 kA |
| Max. Continuing Operating Voltage | 550/1100V |
| Enclosure NEMA Rating | NEMA 12, NEMA 3R, NEMA 4 |
| IP Rating | IP65 |
| Enclosure Material | Carbon Steel |
| Standards | UL1449 TYPE 1/2 |
| Package Quantity | 1 |
