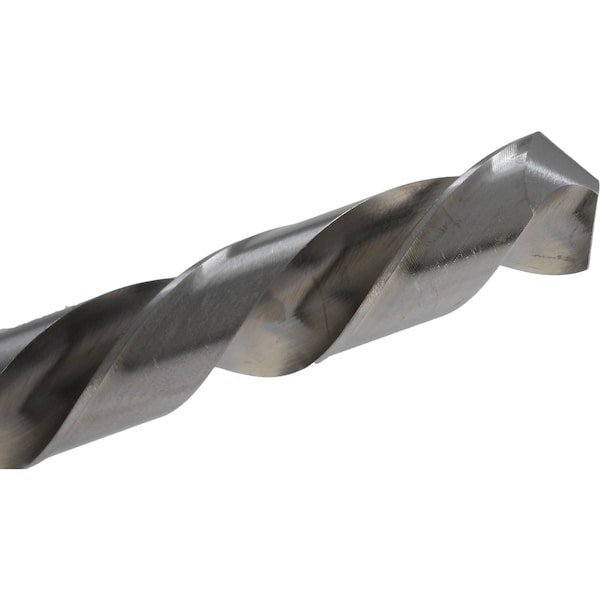

1/16 118 Degree General Purpose Jobber Length Drill (Left Hand) Cle-Line 1898L Bright HSS LHS/LHC
| Item | Jobber Length Drill Bit |
|---|---|
| Overall Length | 1-7/8 in |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 1/16 in |
| Number of Flutes | 2 |
| Shank Dia. | 1/16 in |
| Material - Machining | High Speed Steel |
| Cutting Direction | Left Hand |
| Finish - Machining | Bright |
| Shank Type - Machining | Straight |
| Drill Bit Grouping | Drill Bit |
| Depth:Dia. Ratio | 4 xD |
| Standards | ASME B94.11M |
| Drill Bit Dimension Type | Fractional Inch |
| List Number | 1898L |
| Coolant Fed | Non-Coolant Through |
| Flute Type | Spiral |
| Helix Angle | 21 Degrees to 34 Degrees |
| Decimal Equivalent | 0.0625 |
| Shank Length | 1 in |
| Primary Material Application | Cast Iron, Aluminum, Steel, Non-Ferrous Material |
| Flute Length | 7/8 in |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | P, K, N |
| Drill Length Class | Jobber Length |
| Series | 1898L |
| Drill Point Length | 0.0188 in |
| Drill Bit Point Type | Conventional Point |
| Spiral Direction | Left Hand |
| Maximum Drilling Depth | 21/32 in |
| Drill Diameter Tolerance | +0.0000 in/-0.0005 in |
| Aircraft Drill | No |
| Web Thinning | Thinned |
| Sheeter Drill | No |
| Number of Coolant Holes | 0 |
| Package Quantity | 1 |
