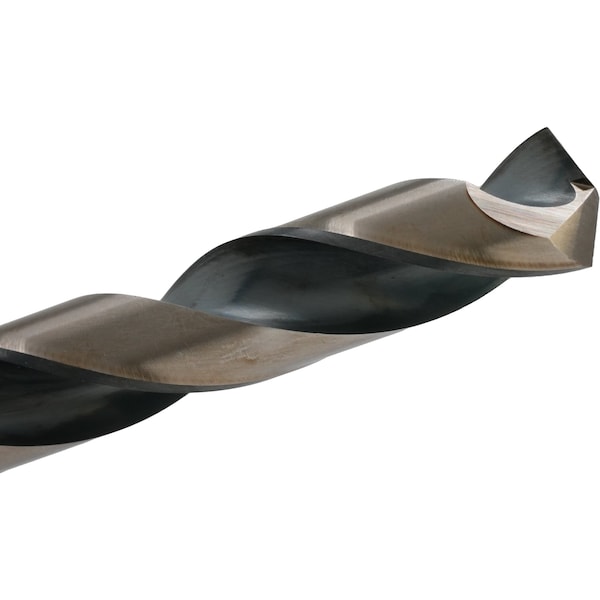

118 Degree Silver & Deming Drill (Metric) Cle-Line 1877M Black & Gold HSS RHS/RHC 15.50mm
| Item | Reduced Shank Drill Bit |
|---|---|
| Material - Machining | High Speed Steel |
| Finish - Machining | Black, Bright |
| Overall Length | 152.4 mm |
| Shank Dia. | 1/2 in |
| Shank Type - Machining | Straight |
| Drill Bit Size | 15.5 mm |
| Drill Bit Point Type | Split Point |
| Flute Length | 3-1/8 in |
| Number of Flutes | 2 |
| Depth:Dia. Ratio | 4xD |
| Flute Type | Spiral |
| Drill Bit Point Angle | 118 Degrees |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.6102 |
| Application | For Alloy And Carbon Steel, Cast Iron And Wood |
| Drill Bit Dimension Type | Metric |
| Coolant Fed | Non-Coolant Through |
| Standards | Not Rated |
| Primary Material Application ISO Code | P, K |
| Maximum Drilling Depth | 2-7/16 in |
| Primary Material Application | Cast Iron, Steel |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Silver & Deming Drill | Yes |
| Spiral Direction | Right Hand |
| Measurement System | Metric |
| Series | 1877M |
| Shank Length | 57.15 mm |
| Helix Angle | 28 deg |
| Package Quantity | 1 |
