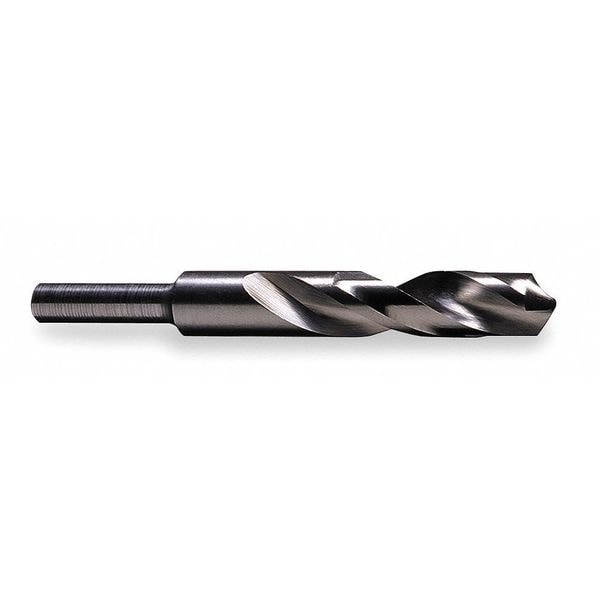

118 Degree Silver & Deming Drill with 1/2 Reduced Shank Cle-Line 1813 Steam Oxide HSS RHS/RHC 47/64
| Item | Reduced Shank Drill Bit |
|---|---|
| Material - Machining | High Speed Steel |
| Finish - Machining | Black Oxide |
| Overall Length | 6 in |
| Shank Dia. | 1/2 in |
| Shank Type - Machining | Straight |
| Drill Bit Size | 47/64 in |
| Drill Bit Point Type | Conventional Point |
| Flute Length | 3-1/8 in |
| Number of Flutes | 2 |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Dimension Type | Fractional Inch |
| Depth:Dia. Ratio | 4xD |
| Flute Type | Spiral |
| Drill Bit Grouping | Drill Bit |
| Decimal Equivalent | 0.7344 |
| List Number | 1,813 |
| Application | For Alloy And Carbon Steel, Cast Iron And Wood |
| Cutting Direction | Right Hand |
| Shank Length | 2-1/4 in |
| Shank Size | 0.5 |
| Measurement System | Fractional Inch |
| Diameter | 0.734375 |
| Coolant Fed | Non-Coolant Through |
| Silver & Deming Drill | Yes |
| Maximum Drilling Depth | 2-1/2 in |
| Material Grade - Machining | General Purpose |
| Helix Angle | 28 deg |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Spiral Direction | Right Hand |
| Series | 1813 |
| Primary Material Application ISO Code | P, K |
| Primary Material Application | Cast Iron, Steel |
| Standards | Not Rated |
| Bit Style | Deming, Silver |
| Number of Drill Bits | 1 |
| Package Quantity | 1 |
