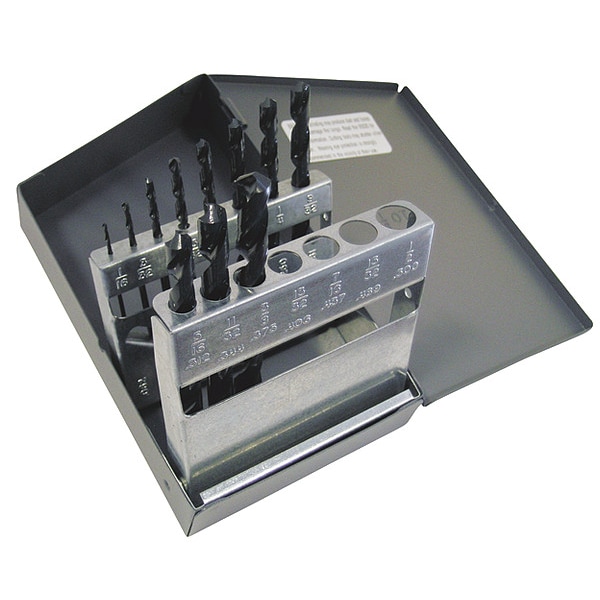

11PC 1/16-3/8x1/32 HSS 118 Degree General Purpose Jobber Lngth Drill Set Cle-Line 1899 Steam Oxide RHS/RHC
| Item | Jobber Length Drill Bit Set |
|---|---|
| Number of Pieces | 11 |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle | 118 deg |
| Drill Bit Grouping | Drill Bit Set |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Size | 1/16 in to 3/8 in x 1/32 |
| Standards | Not Rated |
| Depth x Dia. Ratio | 4 xD |
| Application | For Carbon Steel And Cast Iron |
| Coolant Fed | Non-Coolant Through |
| Helix Angle | Variable |
| Flute Type | Spiral |
| Material - Machining | High Speed Steel |
| Shank Type - Machining | Straight |
| Finish - Machining | Black Oxide |
| Drill Length Class | Length |
| Drill Bit Point Type | Radial Point |
| Drill Point Length | 0.0000 in |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in - +0.0000 in /-0.0010 in |
| Series | 1899 |
| Measurement System | Fractional Inch |
| Largest Drill Bit Size | 3/8 in |
| Smallest Drill Bit Size | 1/16 in |
| Number of Drill Bits | 11 |
| Drill Bit Sizes Included | 1/4 in, 1/8 in, 11/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/32 in, 9/32 in |
| Thread Direction | Right Hand |
| Package Quantity | 1 |
