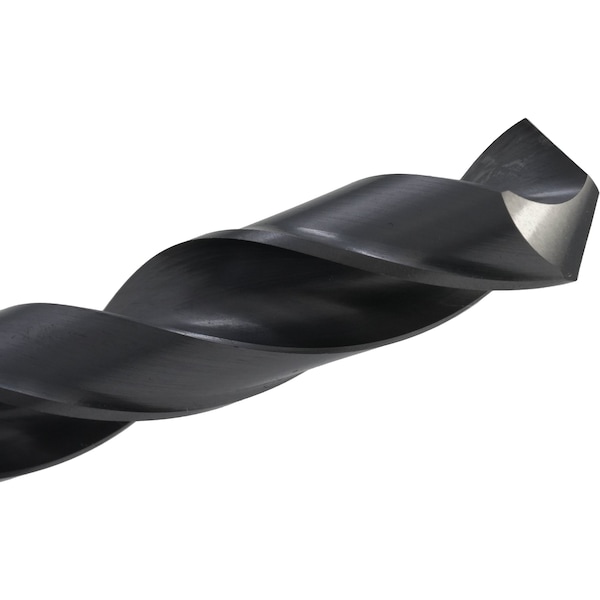

1.30mm HSS 118 Degree General Purpose Jobber Length Drill Cle-Line 1899 Steam Oxide RHS/RHC
| Item | Jobber Length Drill Bit |
|---|---|
| Overall Length | 38 mm |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 1.3 mm |
| Number of Flutes | 2 |
| Shank Dia. | 1.3 mm |
| Material - Machining | High Speed Steel |
| Cutting Direction | Right Hand |
| Finish - Machining | Black Oxide |
| Shank Type - Machining | Straight |
| Drill Bit Grouping | Drill Bit |
| Depth:Dia. Ratio | 4 xD |
| Drill Bit Dimension Type | Metric |
| Standards | DIN 338 |
| List Number | 1899 |
| Coolant Fed | Non-Coolant Through |
| Flute Type | Spiral |
| Helix Angle | 21 Degrees to 34 Degrees |
| Flute Length | 16 mm |
| Decimal Equivalent | 0.0512 |
| Shank Length | 22 mm |
| Primary Material Application | Cast Iron, Steel |
| Drill Bit Point Type | Conventional Point |
| Spiral Direction | Right Hand |
| Series | 1899 |
| Drill Diameter Tolerance | +0.0000 in/-0.0005 in |
| Maximum Drilling Depth | 15/32 in |
| Drill Point Length | 0.0154 mm |
| Primary Material Application ISO Code | P, K |
| Measurement System | Metric |
| Drill Length Class | Jobber Length |
| Sheeter Drill | No |
| Aircraft Drill | No |
| Web Thinning | Thinned |
| Number of Coolant Holes | 0 |
| Package Quantity | 1 |
