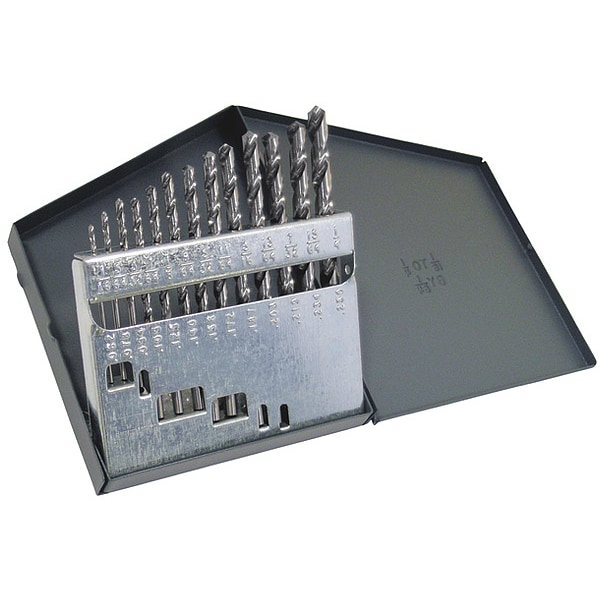

13PC 118 Degree General Purpose Jobber Length Drill Set Cle-Line 1898 Bright HSS RHS/RHC 1/16-1/4x1/64
| Item | Jobber Length Drill Bit Set |
|---|---|
| Number of Pieces | 13 |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle | 118 deg |
| Drill Bit Grouping | Drill Bit Set |
| Depth x Dia. Ratio | 4 xD |
| Drill Bit Dimension Type | Fractional Inch |
| Standards | Not Rated |
| Drill Bit Size | 1/16 in to 1/4 in x 1/64 in |
| Coolant Fed | Non-Coolant Through |
| Flute Type | Spiral |
| Helix Angle | Variable |
| Drill Bit Point Type | Radial Point |
| Finish - Machining | Bright |
| Drill Length Class | Length |
| Material - Machining | High Speed Steel |
| Measurement System | Fractional Inch |
| Drill Point Length | 0.0000 in |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in - +0.0000 in /-0.0007 in |
| Series | 1898 |
| Shank Type - Machining | Straight |
| Number of Drill Bits | 13 |
| Drill Bit Sizes Included | 1/4 in, 1/8 in, 11/64 in, 13/64 in, 15/64 in, 3/16 in, 3/32 in, 5/32 in, 5/64 in, 7/32 in, 7/64 in, 9/64 in |
| Largest Drill Bit Size | 1/4 in |
| Smallest Drill Bit Size | 1/16 in |
| Thread Direction | Right Hand |
| Package Quantity | 1 |
