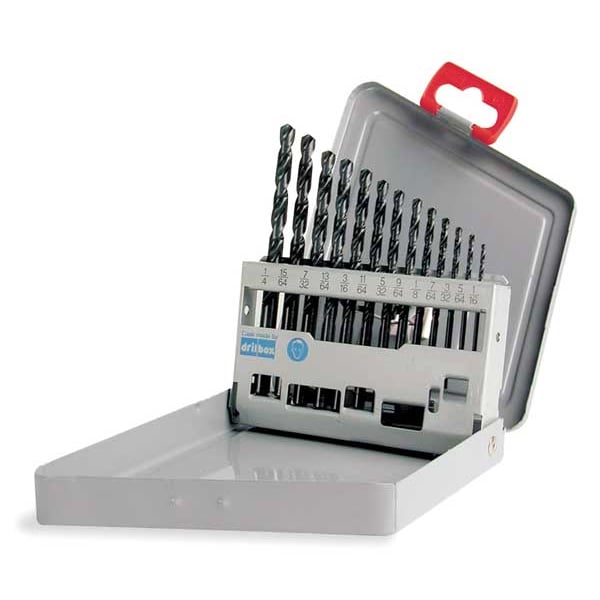

13PC 135 Degree Heavy-Duty Jobber Length Drill Set Cle-Line 1801 Steam Oxide HSS RHS/RHC 1/16-1/4x1/64
| Item | Jobber Drill Bit Set |
|---|---|
| Number of Pieces | 13 |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle | 135 deg |
| Drill Bit Material | High Speed Steel |
| Includes | Metal Drill Index |
| Sizes Included | 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4" |
| List Number | 1801 |
| Shank Dia. | 1/16 in to 1/4 in |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit Set |
| Point Type | Split Point |
| Drill Bit Size | 1/16 in -1/4 in by 1/64 in |
| Standards | ASME B94.11M-1993 |
| Depth x Dia. Ratio | 4 xD |
| Measurement System | Fractional Inch |
| Left/Right Hand | Right |
| Shank Type | Straight |
| Flute Type | Spiral |
| Drill Style | Jobber Drill |
| Size Range | 1/16"-1/4" |
| Aircraft Drill | No |
| Number of Drill Bits | 13 |
| Primary Material Application | All Materials |
| Smallest Drill Bit Size | 1/16 in |
| Drill Bit Point Type | Split Point |
| Drill Bit Sizes Included | 1/4 in, 1/8 in, 11/64 in, 13/64 in, 15/64 in, 3/16 in, 3/32 in, 5/32 in, 5/64 in, 7/32 in, 7/64 in, 9/64 in |
| Material - Machining | High Speed Steel |
| Drill Length Class | Length |
| Material Grade - Machining | Heavy Duty |
| Shank Type - Machining | Straight |
| Finish - Machining | Black Oxide |
| Largest Drill Bit Size | 1/4 in |
| Coolant Fed | Non-Coolant Through |
| Drill Bit Case Type | Metal Drill Index |
| Package Quantity | 1 |
