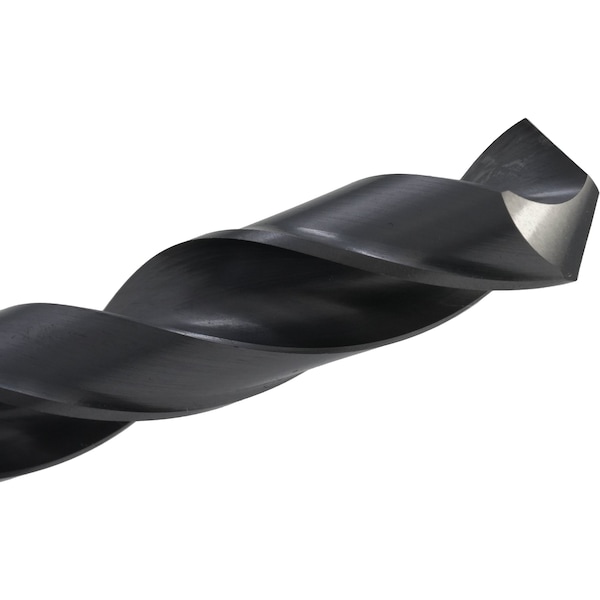

21/32 HSS 118 Degree Silver & Deming Drill w/ 1/2 Reduced, 3-Flats Shank Cle-Line 1892 Steam Oxide RHS/RHC
| Item | Reduced Shank Drill Bit |
|---|---|
| Material - Machining | High Speed Steel |
| Finish - Machining | Black Oxide |
| Overall Length | 6 in |
| Shank Dia. | 1/2 in |
| Shank Type - Machining | Straight |
| Drill Bit Size | 21/32 in |
| Drill Bit Point Type | Conventional Point |
| Flute Length | 3-1/8 in |
| Number of Flutes | 2 |
| Depth:Dia. Ratio | 4xD |
| Application | For Alloy And Carbon Steel, Cast Iron And Wood |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle | 118 Degrees |
| Flute Type | Spiral |
| Drill Bit Dimension Type | Fractional Inch |
| Decimal Equivalent | 0.6562 |
| Coolant Fed | Non-Coolant Through |
| Series | 1892 |
| Maximum Drilling Depth | 2-5/8 in |
| Spiral Direction | Right Hand |
| Shank Length | 2-1/4 in |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Helix Angle | 28 deg |
| Material Grade - Machining | M42 |
| Silver & Deming Drill | Yes |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application ISO Code | P, K |
| Measurement System | Fractional Inch |
| Standards | Not Rated |
| Package Quantity | 1 |
