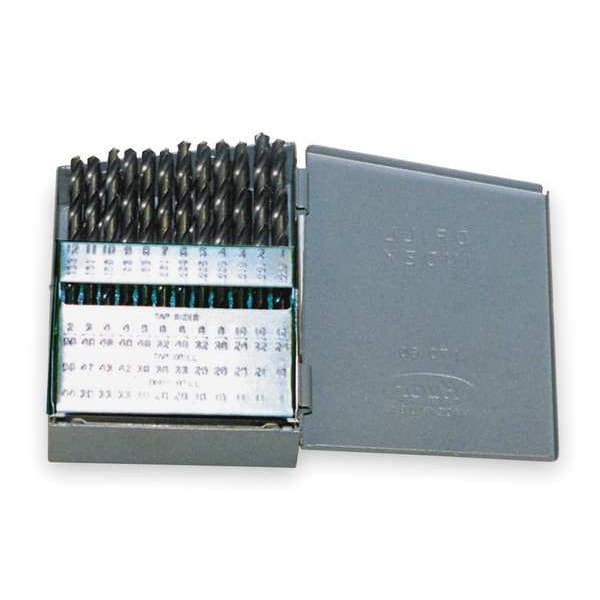

60PC 118 Degree General Purpose Jobber Length Drill Set Cle-Line 1899 Steam Oxide HSS RHS/RHC #1-#60
| Item | Jobber Drill Bit Set |
|---|---|
| Number of Pieces | 60 |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle | 118 deg |
| Drill Bit Material | High Speed Steel |
| Includes | Metal Drill Index |
| Drill Bit Size | #60 to #1 |
| Drill Bit Grouping | Drill Bit Set |
| Sizes Included | #60-#1 |
| Point Type | Conventional Point |
| Drill Bit Dimension Type | Wire |
| List Number | 1899 |
| Shank Dia. | 0.0400 in to 0.2280 in |
| Depth x Dia. Ratio | 4 xD |
| Standards | ASME B94.11M-1993 |
| Drill Style | Jobber Drill |
| Left/Right Hand | Right |
| Measurement System | Wire |
| Size Range | #1-#60 |
| Shank Type | Straight |
| Flute Type | Spiral |
| Drill Bit Sizes Included | #10, #11, #12, #13, #14, #15, #16, #17, #18, #19, #2, #20, #21, #22, #23, #24, #25, #26, #27, #28, #29, #3, #30, #31, #32, #33, #34, #35, #36, #37, #38, #39, #4, #40, #41, #42, #43, #44, #45, #46, #47, #48, #49, #5, #50, #51, #52, #53, #54, #55, #56, #57, #58, #59, #6, #60, #7, #8, #9 |
| Finish - Machining | Black Oxide |
| Material - Machining | High Speed Steel |
| Drill Length Class | Length |
| Smallest Drill Bit Size | #60 |
| Primary Material Application | All Materials |
| Number of Drill Bits | 60 |
| Material Grade - Machining | General Purpose |
| Coolant Fed | Non-Coolant Through |
| Shank Type - Machining | Straight |
| Largest Drill Bit Size | #1 |
| Aircraft Drill | No |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Case Type | Metal Drill Index |
| Package Quantity | 1 |
