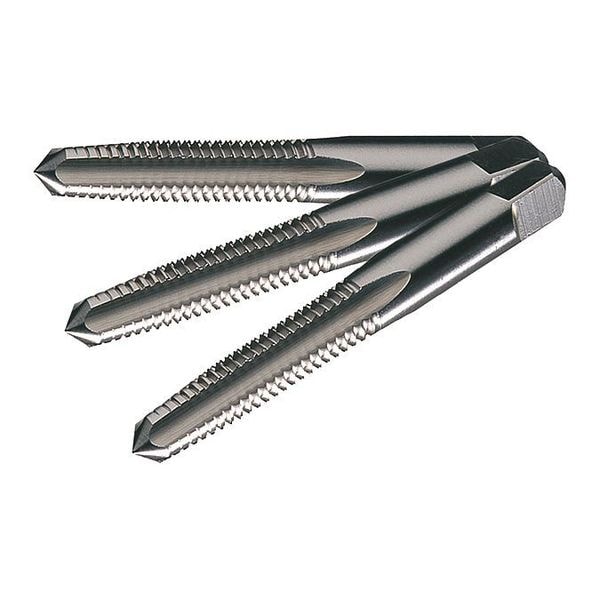

HSS Taper, Plug and Bottoming Straight Flute Hand Tap Set 0404 Cle-Line Bright 3-Flute GH2 #6-40UNF
| Item | Tap Set |
|---|---|
| Overall Length | 2 in |
| Tap Material | High Speed Steel |
| Tap Finish | Bright (Uncoated) |
| Tap Thread Size | #6-40 |
| Thread Direction | Right Hand |
| Number of Flutes | 3 |
| Shank Dia. | 9/64 in |
| Number of Pieces | 3 |
| Tap Style | Straight Flute |
| Thread Length | 11/16 in |
| Standards | USCTI Table 302 |
| Tap Dimension Type | Inch |
| List Number | 0404 |
| Tap Thread Type | UNF |
| Tap Chamfer | Bottoming, Plug, Taper |
| Pitch Diameter Limit | H2 |
| Thread Standard | UNF |
| Thread Limit | H2 |
| Class of Fit | 2 B |
| Package Quantity | 1 |
