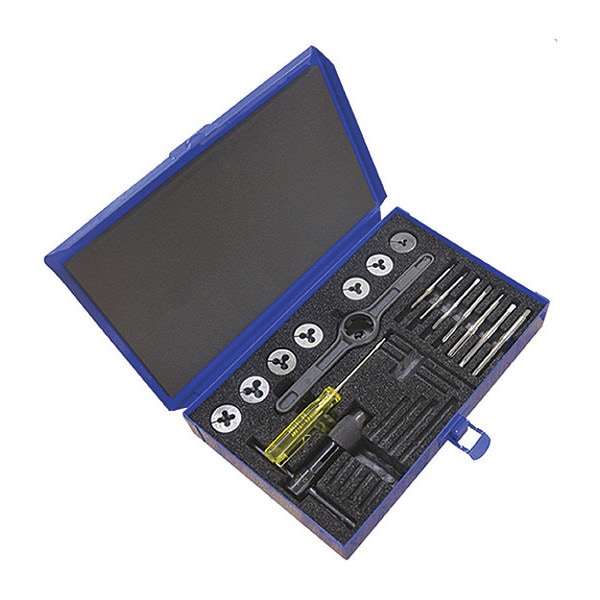

M2.5-M6 17PC HSS Plug Hand Tap And HSS Round Adjustable Die Set Cle-Line 0411 7 Sizes
| Item | Tap and Die Set |
|---|---|
| Die Shape | Round |
| Die Material | High Speed Steel |
| Thread Direction | Right Hand |
| Tap Finish | Bright (Uncoated) |
| Tap Chamfer | Plug |
| Number of Flutes | 3, 4 |
| Tap Material | High Speed Steel |
| Number of Pieces | 17 |
| Material | High Speed Steel |
| Standards | ANSI |
| Measurement System | Metric |
| Tap Series | 411 |
| Max. Tap Thread Size | M6x1.00 |
| Features | General Purpose Applications |
| Secondary Material Application ISO Code | M |
| Max. Die Thread Size | M6x1 |
| Tap Shank Standard | Table 302 |
| Primary Material Application | All Materials |
| Secondary Material Application | Stainless Steel |
| Number of Dies in Set | 7 |
| Tap Overall Length | Table 302 |
| Tap Wrench Number | T9 |
| Tap Type | Hand Tap |
| Spiral Direction | Neutral |
| Extended Neck | No |
| Die Material Grade | Carbon Steel |
| Die Thread Sizes Included | M2.5 x 0.45, M3 x 0.5, M3.5 x 0.6, M4 x 0.7, M4.5 x 0.75, M5 x 0.8, M6 x 1.0 |
| Extended Shank | No |
| Finish - Machining | Bright (Uncoated) |
| Min. Bore Dia. | M2.5x0.45 |
| Material - Machining | High Speed Steel |
| Min. Tap Thread Size | M2.5x0.45 |
| Die Finish | Bright (Uncoated) |
| Class of Fit | 2B |
| Powdered Metal Base Material | No |
| 75% Thread Drill Size | #25, #46, 2.50mm, 2.90mm, 3.30mm, 4.20mm, 5.00mm |
| Tap Sizes Included | M2.5 x 0.45, M3 x 0.5, M3.5 x 0.6, M4 x 0.7, M4.5 x 0.75, M5 x 0.8, M6 x 1.0 |
| Number Of Taps | 7 |
| 55% Thread Drill Size | #31, #37, #44, 3.50mm, 4.40mm, 5.25mm, 5/32 in |
| Primary Material Application ISO Code | K, N, P, H, M, S |
| Tap Material Grade | M2 |
| Thread Limit | D3, D4, D5 |
| Die Type | Adjustable |
| Case Type | Metal |
| Die Series | 710 |
| Thread Pitch | 0.45, 0.50, 0.60, 0.70, 0.75, 0.80, 1.0 |
| Dimensions Standard | Metric |
| Tap Shank Dia. | Table 302 |
| Helix Angle | 0 Degrees |
| Thread Sizes Included | M2.5 x 0.45, M3 x 0.5, M3.5 x 0.6, M4 x 0.7, M4.5 x 0.75, M5 x 0.8, M6 x 1.0 |
| Extension Tap | No |
| Coolant Fed | Non-Coolant Through |
| 65% Thread Drill Size | #24, #38, 13/64 in, 3.00mm, 3.40mm, 4.30mm |
| Package Quantity | 1 |
