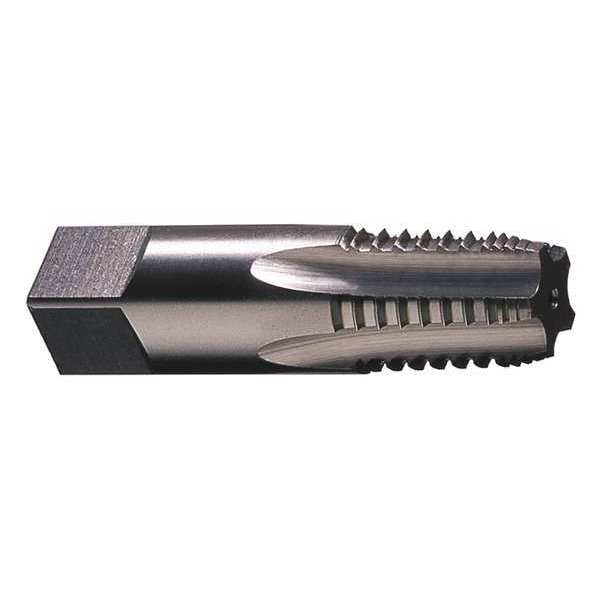

Pipe Tap, 1-1/4"-11-1/2, Semi-Bottoming, 5 Flutes, NPT
| Item | Pipe Tap |
|---|---|
| Tap Thread Size | 1-1/4"-11-1/2 |
| Tap Chamfer | Semi-Bottoming |
| Number of Flutes | 5 |
| Tap Thread Type | NPT |
| Thread Direction | Right Hand |
| Tap Dimension Type | Inch |
| List Number | E2110 |
| Thread Length | 1-3/4 in |
| Tap Finish | Bright |
| Overall Length | 4 in |
| Tap Material | High Speed Steel |
| Tap Grouping | Tap |
| Number of Pieces | 1 |
| Standards | USCTI Table 311 |
| Shank Dia. | 1.312 in |
| Tap Style | Pipe |
| Pitch Diameter Limit | Not Rated |
| Cutting Direction - Machining | Right Hand |
| Series | 0464 |
| Shank Length | 2-1/4 in |
| Primary Material Application ISO Code | P, M |
| Tap Shank Standard | USCTI Table 311 |
| Spiral Direction | Neutral |
| Measurement System | Fractional Inch |
| Thread Standard | NPT |
| Max. Projection | 0.686 in |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application | Stainless Steel, Steel |
| Threads per Inch | 18 |
| Tap Length Standard | USCTI Table 311 |
| Interrupted Thread | Yes |
| Drill Bit Size | 1-15/32 in, 1-31/64 in |
| 75% Thread Drill Size | 1.4844 in |
| Extended Neck | No |
| Material Grade - Machining | 464 |
| Square Size | 0.984 in |
| Thread Size | 1-1/4"-11 1/2 |
| Package Quantity | 1 |
