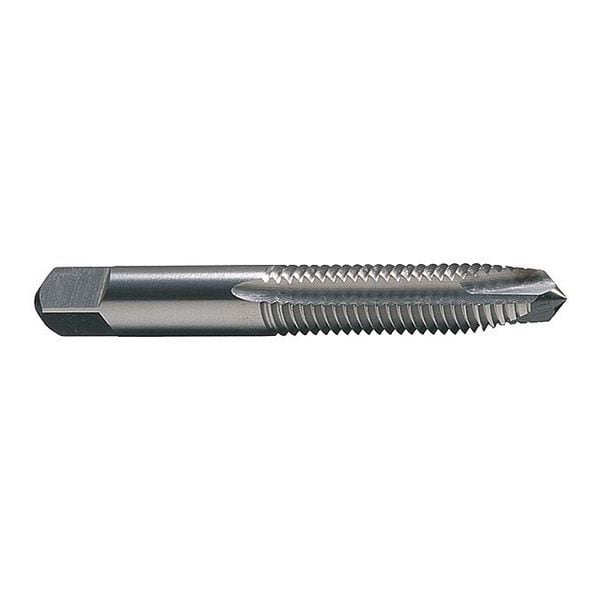

Spiral Point Tap, 5/8"-11, Plug, UNC, 3 Flutes, Bright
| Item | Spiral Point Tap |
|---|---|
| Shank Dia. | 0.48 in |
| Tap Material | High Speed Steel |
| Tap Style | Spiral Point |
| Tap Size | 5/8" |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch |
| Overall Length | 3-13/16 in |
| Number of Flutes | 3 |
| Thread Direction | Right Hand |
| Pitch Diameter Limit | H5 |
| Number of Pieces | 1 |
| List Number | E2020 |
| Tap Finish | Bright |
| Tap Thread Type | UNC |
| Tap Thread Size | 5/8"-11 |
| Thread Length | 1-13/16 in |
| Standards | USCTI Table 302 |
| Cutting Direction - Machining | Right Hand |
| 65% Thread Drill Size | 13.9 mm |
| 55% Thread Drill Size | 14.2 mm |
| Thread Size | 5/8"-11 |
| Drill Bit Size | 17/32 in |
| Thread Limit | H5 |
| Extended Neck | Yes |
| Shank Length | 2 in |
| Spiral Direction | Neutral |
| 75% Thread Drill Size | 13.6 mm |
| Series | 0411 |
| Thread Standard | UNC |
| Threads per Inch | 11 |
| Primary Material Application ISO Code | P, K, N |
| Measurement System | Fractional Inch |
| Shank Type - Machining | Straight |
| Primary Material Application | All Materials |
| Square Size | 0.36 in |
| Class of Fit | 2B |
| Helix Angle | 0 deg |
| Package Quantity | 1 |
