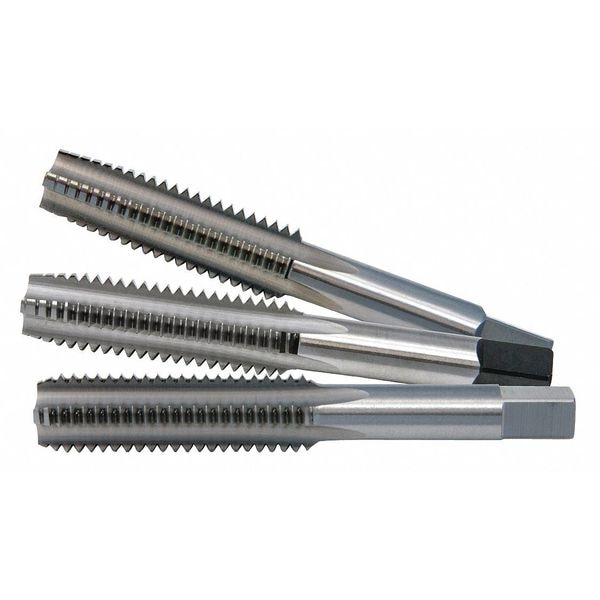

Straight Flute Hand Tap Bottoming, Plug, Taper, 4 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 0.318 in |
| Tap Material | High Speed Steel |
| Tap Chamfer | Plug, Taper, Bottoming |
| Tap Style | Straight Flute |
| Tap Dimension Type | Inch |
| Number of Flutes | 4 |
| Overall Length | 2-23/32 in |
| Thread Direction | Right Hand |
| Pitch Diameter Limit | H3 |
| Standards | USCTI Table 302 |
| Thread Length | 1-1/8 in |
| Tap Grouping | Tap Set |
| Tap Finish | Bright |
| Tap Thread Size | 5/16"-24 |
| Tap Thread Type | UNF |
| Number of Pieces | 1 |
| List Number | 4205 |
| Cutting Direction - Machining | Right Hand |
| Series | 404 |
| Thread Size | 5/16"-24 |
| Thread Standard | UNF |
| Tap Length Standard | USCTI |
| Shank Length | 1-19/32 in |
| Thread Limit | H3 |
| Tap Shank Standard | USCTI |
| Spiral Direction | Neutral |
| Measurement System | Fractional Inch |
| Square Size | 0.238 in |
| Extended Neck | Yes |
| 75% Thread Drill Size | I |
| 65% Thread Drill Size | J |
| Threads per Inch | 24 |
| 55% Thread Drill Size | 9/32 in |
| Shank Type - Machining | Straight |
| Class of Fit | 3 B |
| Tap Type | Straight Flute |
| Package Quantity | 1 |
