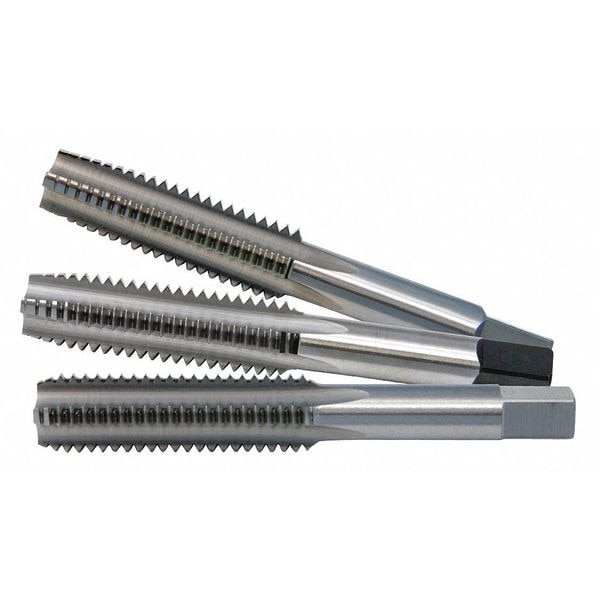

Straight Flute Hand Tap, Bottoming, Plug, Taper 4 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 3.58 mm |
| Tap Material | High Speed Steel |
| Tap Chamfer | Plug, Taper, Bottoming |
| Tap Style | Straight Flute |
| Tap Dimension Type | Metric |
| Number of Flutes | 4 |
| Overall Length | 96.84 mm |
| Thread Direction | Right Hand |
| Pitch Diameter Limit | D7 |
| Thread Length | 42.07 mm |
| Tap Thread Size | M20-2.50 |
| Tap Thread Type | Metric Coarse |
| Tap Grouping | Tap Set |
| Tap Finish | Bright |
| Standards | USCTI Table 302 |
| List Number | 0404M |
| Number of Pieces | 1 |
| Cutting Direction - Machining | Right Hand |
| Series | 0404M |
| Extended Neck | Yes |
| Tap Shank Standard | USCTI |
| Shank Length | 62.7 mm |
| Tap Length Standard | USCTI |
| 55% Thread Drill Size | 18.2 mm |
| 75% Thread Drill Size | 17.5 mm |
| Measurement System | Metric |
| Spiral Direction | Neutral |
| Thread Pitch | 2.5 mm |
| Square Size | 12.42 mm |
| Thread Limit | D7 |
| Shank Type - Machining | Straight |
| 65% Thread Drill Size | 45/64 in |
| Thread Standard | Metric Coarse |
| Thread Size | M20x2.5 |
| Class of Fit | 6H |
| Tap Type | Straight Flute |
| Package Quantity | 1 |
