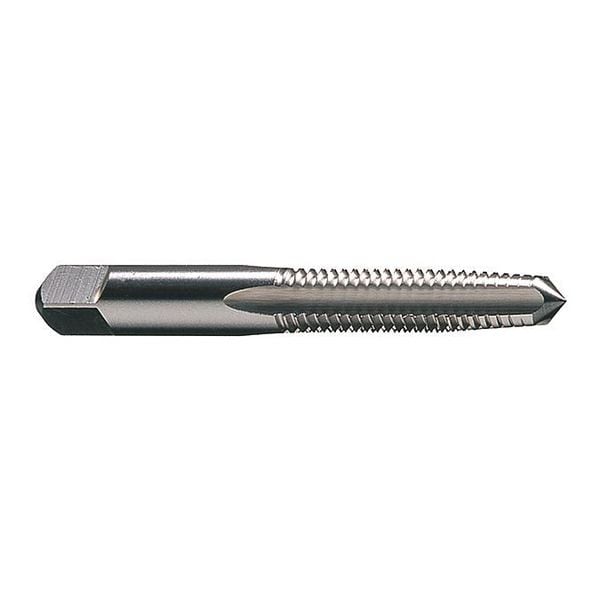

Straight Flute Hand Tap Taper, 3 Flutes
| Item | Straight Flute Hand Tap |
|---|---|
| Shank Dia. | 0.141 in |
| Tap Chamfer | Taper |
| Tap Dimension Type | Inch |
| Tap Material | High Speed Steel |
| Tap Size | #6 |
| Tap Style | Straight Flute |
| Overall Length | 2 in |
| Number of Flutes | 3 |
| Tap Finish | Bright |
| Tap Thread Type | UNF |
| Pitch Diameter Limit | H2 |
| List Number | 860.1-1080-037A1-PM 4234 |
| Tap Thread Size | #6-40 |
| Number of Pieces | 1 |
| Standards | USCTI Table 302 |
| Thread Direction | Right Hand |
| Thread Length | 11/16 in |
| Cutting Direction - Machining | Right Hand |
| Series | 401 |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Thread Standard | UNF |
| Extended Neck | Yes |
| Tap Shank Standard | USCTI |
| Shank Type - Machining | Straight |
| Thread Limit | H2 |
| Spiral Direction | Neutral |
| Thread Size | #6-40 |
| Threads per Inch | 40 |
| Primary Material Application ISO Code | N, P, K |
| Tap Length Standard | USCTI |
| Shank Length | 1-5/16 in |
| Measurement System | Pipe |
| 75% Thread Drill Size | #33 |
| 65% Thread Drill Size | #32 |
| Square Size | 0.11 in |
| 55% Thread Drill Size | #31 |
| Class of Fit | 2 B |
| Helix Angle | 0 Degrees |
| Package Quantity | 1 |
