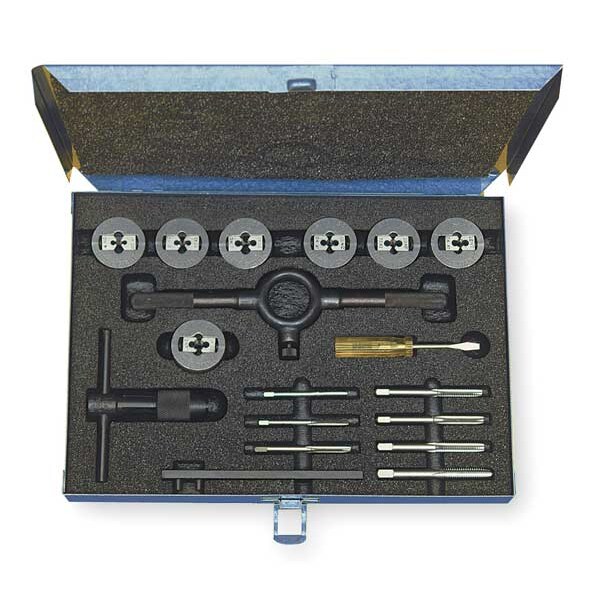

17PC #4-40 - 1/4-20 UNC HSS Plug Hand Tap and Two-Piece Die Set Cle-line 055
| Item | Tap and Die Set |
|---|---|
| Sizes Included | #4-40, #6-32, #8-32, #10-32, #10-24, #12-24, 1/4"-20 |
| Number of Pieces | 18 |
| Material | High Speed Steel |
| Thread Direction | Right Hand |
| Type | Fractional |
| Tap Chamfer | Plug |
| Cutting Sizes | 7 |
| Tap Wrench Number | A1, T9 |
| Thread Type | UNC, UNF |
| Finish | Mill |
| Size Range | #4 to 1/4" |
| Tap Dimension Type | Inch, Machine |
| SAE or Metric | SAE |
| Size/Range | #4 to 1/4" |
| Die Material | High Speed Steel |
| Die Shape | Round Fixed |
| Die Type | 2-Piece |
| Standards | ANSI |
| Includes | Tap, Die and Collet for Each Size, Plastic Case |
| Left/Right Hand | Right Hand |
| Tap Material | High Speed Steel |
| Number of Flutes | 3, 4 |
| Tap Finish | Bright (Uncoated) |
| Features | Self Alignment |
| Tap Series | HTGP |
| Min. Bore Dia. | #4-40 NC |
| Die Material Grade | Carbon Steel |
| Die Thread Sizes Included | #10-24, #10-32, #12-24, #4-40, #6-32, #8-32, 1/4"-20 |
| Tap Shank Standard | Table 302 |
| Tap Material Grade | M2 |
| Primary Material Application ISO Code | M, H, K, N, P, S |
| Tap Type | Hand Tap |
| 55% Thread Drill Size | #3, #32, 3.60mm, 3/32 in |
| Tap Overall Length | Table 302 |
| Tap Shank Dia. | Table 302 |
| Max. Die Thread Size | 1/4"-20 |
| Number of Dies in Set | 7 |
| Threads per Inch | 20, 24, 32, 40 |
| Finish - Machining | Bright (Uncoated) |
| Extended Neck | No |
| Helix Angle | 0 Degrees |
| Spiral Direction | Neutral |
| Primary Material Application | All Materials |
| Secondary Material Application ISO Code | M |
| Dimensions Standard | Fractional Inch |
| Tap Sizes Included | #10-24, #10-32, #12-24, #4-40, #6-32, #8-32, 1/4"-20 |
| Min. Tap Thread Size | #4-40 |
| Thread Sizes Included | #10-24, #10-32, #12-24, #4-40, #6-32, #8-32, 1/4"-20 |
| Extension Tap | No |
| Powdered Metal Base Material | No |
| Secondary Material Application | Stainless Steel |
| Thread Standard | UNC, UNF |
| Max. Tap Thread Size | 1/4"-20 |
| Case Type | Metal |
| Measurement System | Fractional Inch |
| Number Of Taps | 7 |
| 65% Thread Drill Size | #34, #5, 2.30mm, 3.50mm |
| Class of Fit | 2B |
| Die Finish | Bright (Uncoated) |
| Coolant Fed | Non-Coolant Through |
| Thread Limit | H2, H3 |
| Material - Machining | High Speed Steel |
| Extended Shank | No |
| Die Series | 550 |
| 75% Thread Drill Size | #36, #7, 2.20mm, 3.40mm |
| Package Quantity | 1 |
