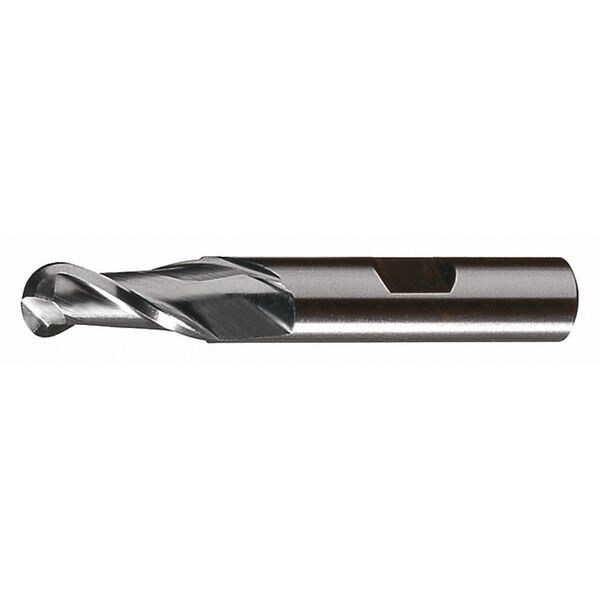

2-Flute Cobalt 8% Ball Nose Single End CenterCut Finisher CTD HGC-2B Bright 7/8x7/8x1-7/8x4-1/8
| Dimension Type | Fractional Inch |
|---|---|
| Milling Diameter | 7/8 in |
| End Mill Material | Cobalt |
| Number of Flutes | 2 |
| Length of Cut | 1-7/8 in |
| Single End/Double End | Single End |
| End Mill Cutting Type | Center Cutting |
| Grade | General Purpose |
| Shank Dia. | 7/8 in |
| Helix Angle | 30 deg |
| End Mill Application | Finishing |
| Finish | Bright |
| Super Alloy (S) Compatibility | Yes |
| Item | Ball End Mill |
| Overall Length | 4-1/8 in |
| Cast Iron (K) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Milling Dia. | 7/8 in |
| Corner Radius | 0 in |
| List Number | HGC-2B |
| Cutting Direction | Right Hand |
| Hardened (H) Compatibility | No |
| End Mill Style | Ball Nose |
| Steel (P) Compatibility | Yes |
| Shank Type | Weldon |
| Neck Length | Not Applicable |
| Neck Dia. | Not Applicable |
| Measurement System | Fractional Inch |
| Chip-Breaker | No |
| Finish - Machining | Bright |
| Shank Type - Machining | Weldon Flat |
| Primary Material Application ISO Code | P, M, N |
| Coolant Fed | Non-Coolant Through |
| Material Grade - Machining | General Purpose |
| Drilling Tool Configuration | Individual |
| Primary Material Application | Stainless Steel, Steel |
| Material - Machining | Cobalt |
| Material Applications | Aluminum, Carbon Steel, Alloy Steel, Stainless Steel |
| Spiral Direction | Right Hand |
| Package Quantity | 1 |
