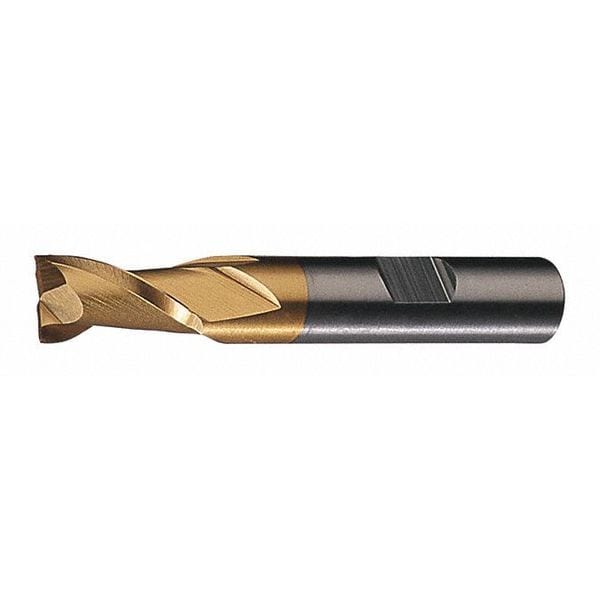

2-Flute HSS Keyway Tolerance Square Single End Mill Cleveland HG-2K-TN TiN 1/4x3/8x1/2x2-7/16
| Dimension Type | Fractional Inch |
|---|---|
| Milling Diameter | 1/4 in |
| End Mill Material | Steel |
| Number of Flutes | 2 |
| Length of Cut | 1/2 in |
| Single End/Double End | Single End |
| End Mill Cutting Type | Center Cutting |
| Grade | General Purpose |
| Shank Dia. | 3/8 in |
| Overall Length | 2-7/16 in |
| Shank Type | Weldon |
| Hardened (H) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Milling Dia. | 1/4 in |
| Helix Angle | 30 deg |
| End Mill Application | Finishing |
| List Number | HG-2K |
| Corner Radius | 0 in |
| Item | Keyway End Mill |
| Cutting Direction | Right Hand |
| End Mill Style | Keyway |
| Finish | TiN |
| Non Ferrous (N) Compatibility | Yes |
| Stainless (M) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Cast Iron (K) Compatibility | Yes |
| Finish - Machining | TiN |
| Material - Machining | High Speed Steel |
| Measurement System | Fractional Inch |
| Primary Material Application | All Materials |
| Drilling Tool Configuration | Individual |
| Flute Type | Helical |
| Shank Type - Machining | Weldon Flat |
| Package Quantity | 1 |
