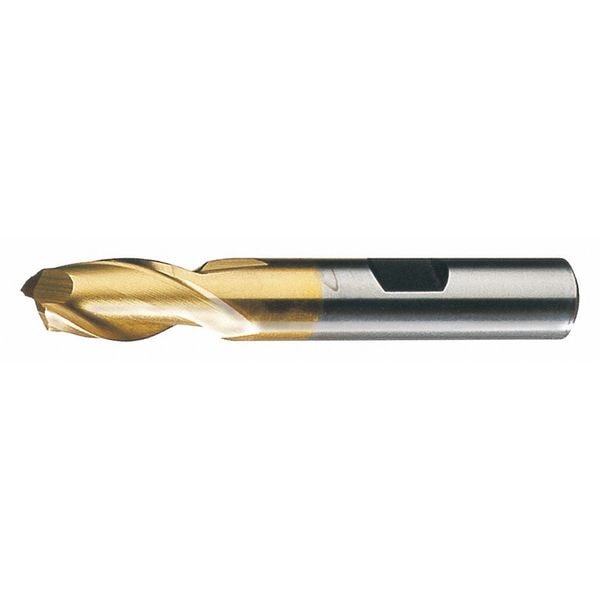

2-Flute HSS Square Single End Mill Cleveland HG-2-TN TiN 7/8"x3/4"x1-1/2"x4-1/8"
| Milling Diameter | 7/8 in |
|---|---|
| Number of Flutes | 2 |
| End Mill Style | Square |
| Finish | Tin |
| Length of Cut | 1-1/2 in |
| Item | Square End Mill |
| Dimension Type | Fractional Inch |
| End Mill Material | High Speed Steel |
| End Mill Cutting Type | Center Cutting |
| Single End/Double End | Single End |
| End Mill Application | Finishing |
| Corner Radius | 4-1/8 in |
| Shank Dia. | 3/4 in |
| List Number | HG-2-TN |
| Milling Dia. | 7/8 in |
| Overall Length | 4-1/8 in |
| Helix Angle | 30 deg |
| Grade | General Purpose |
| Cutting Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Drilling Tool Configuration | Individual |
| Measurement System | Fractional Inch |
| Material - Machining | High Speed Steel |
| Shank Type - Machining | Weldon Flat |
| Neck Length | Not Applicable |
| Finish - Machining | TiN |
| Neck Dia. | Not Applicable |
| Material Grade - Machining | General Purpose |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application ISO Code | P, K |
| Chip-Breaker | No |
| Package Quantity | 1 |
