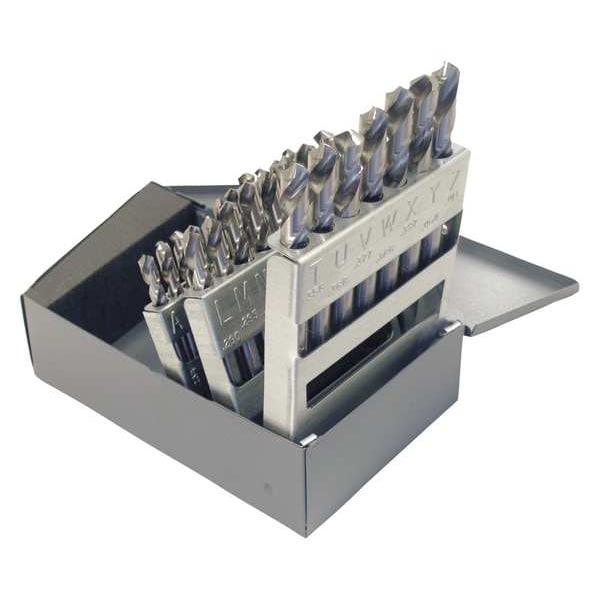

26PC 118 Degree General-Purpose Screw Machine Length Drill Set Cleveland 2120 Bright HSS RHS/RHC A-Z
| Item | Screw Machine Drill Bit Set |
|---|---|
| Number of Pieces | 0 |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle | 118 deg |
| Drill Bit Material | High Speed Steel |
| Includes | Metal Drill Index |
| Shank Shape | Straight |
| Coolant Through | No |
| Flute Type | Spiral |
| List Number | GMKD10CS5 |
| Drill Bit Size | A-Z |
| Standards | ASME B94.11M-1993 |
| Application | For Drilling Alloy Steel, Aluminum, Brass, Carbon Steel, Cast Iron, Copper Alloys |
| Drilling Length | 1.313", 1.375", 1.375", 1.375", 1.375", 1.438", 1.438", 1.500", 1.500", 1.500", 1.500", 1.563", 1.563", 1.625", 1.688", 1.688", 1.688", 1.688", 1.750", 1.750", 1.813", 1.875", 1.875", 1.938", 1.938", 2.000" |
| Sizes Included | A-Z |
| Shank Dia. | A-Z |
| Overall Length | 0 |
| Shank Type | Straight |
| Point Type | Radial |
| Drill Bit Grouping | Drill Bit Set |
| Shank Size | 0.234 in, 0.238 in, 0.242 in, 0.246 in, 1/4 in, 0.257 in, 0.261 in, 0.266 in, 0.272 in, 0.277 in, 0.281 in, 0.29 in, 0.295 in, 0.302 in, 0.316 in, 0.323 in, 0.332 in, 0.339 in, 0.348 in, 0.358 in, 0.368 in, 0.377 in, 0.386 in, 0.397 in, 0.404 in, 0.413 in |
| Drill Bit Dimension Type | Letter |
| Depth x Dia. Ratio | 4 xD |
| Coolant Fed | Non-Coolant Through |
| Shank Type - Machining | Straight |
| Smallest Drill Bit Size | A |
| Number of Drill Bits | 26 |
| Drill Bit Sizes Included | A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y |
| Primary Material Application | All Materials |
| Largest Drill Bit Size | Z |
| Drill Length Class | Screw Machine Length |
| Measurement System | Letter |
| Finish - Machining | Bright |
| Material Grade - Machining | General Purpose |
| Drill Bit Point Type | Conventional Point |
| Material - Machining | High Speed Steel |
| Drill Bit Case Type | Metal Index |
| Diameter | A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z |
| Package Quantity | 1 |
