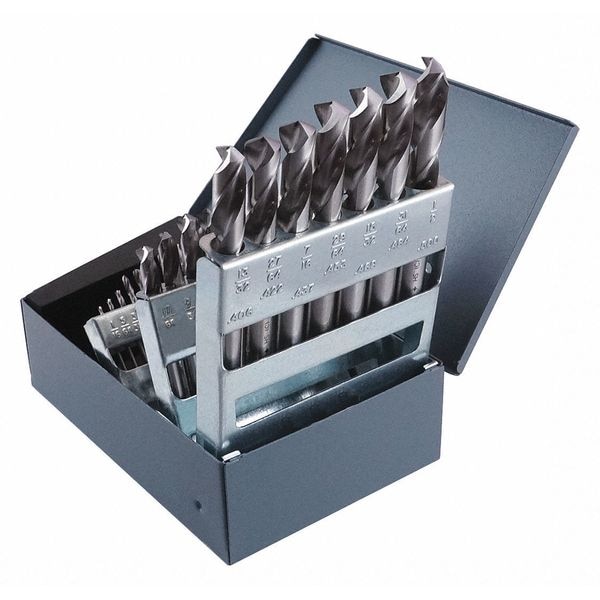

29PC NAS907 Type C Heavy-Duty Screw Machine Dril Set Cleveland 2330 Bright HSS RHS/RHC 1/16-1/2x1/64
| Item | Screw Machine Drill Bit Set |
|---|---|
| Number of Pieces | 0 |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle | 135 deg |
| Drill Bit Material | High Speed Steel |
| Includes | Metal Drill Index |
| Drill Bit Grouping | Drill Bit Set |
| Shank Size | 1/16 in, 5/64 in, 3/32 in, 7/64 in, 1/8 in, 9/64 in, 5/32 in, 11/64 in, 3/16 in, 13/64 in, 7/32 in, 15/64 in, 1/4 in, 17/64 in, 9/32 in, 19/64 in, 5/16 in, 21/64 in, 11/32 in, 23/64 in, 3/8 in, 25/64 in, 13/32 in, 27/64 in, 7/16 in, 29/64 in, 15/32 in, 31/64 in, 1/2 in |
| Shank Dia. | 1/16 in -1/2 in |
| Drilling Length | 0.625", 0.688", 0.750", 0.813", 0.875", 0.938", 1.000", 1.063", 1.125", 1.188", 1.250", 1.313", 1.375", 1.438", 1.500", 1.563", 1.625", 1.688", 1.688", 1.750", 1.813", 1.875", 1.938", 2.000", 2.063", 2.125", 2.125", 2.188", 2.250" |
| Application | For Drilling Austenitic Stainless Steel, Aluminum, Carbon Steel, Die Steel, Iron-Based Alloys, Tool Steel |
| Flute Type | Spiral |
| Drill Bit Size | 1/16"-1/2" by 1/64" |
| List Number | 917 |
| Standards | NAS 907 Type C |
| Sizes Included | 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2" |
| Drill Bit Dimension Type | Fractional Inch |
| Point Type | Split |
| Overall Length | 1-5/8 in, 1.688 in, 1-3/4 in, 1.813 in, 1-7/8 in, 1.938 in, 2.063 in, 2-1/8 in, 2.188 in, 2-1/4 in, 2-3/8 in, 2.438 in, 2-1/2 in, 2-5/8 in, 2.688 in, 2-3/4 in, 2.813 in, 2.938 in, 3 in, 3.063 in, 3-1/8 in, 3-1/4 in, 3.313 in, 3-3/8 in, 3.438 in, 3.563 in, 3-5/8 in, 3.688 in, 3-3/4 in |
| Coolant Through | No |
| Shank Shape | Straight |
| Shank Type | Straight |
| Depth x Dia. Ratio | 4 xD |
| Coolant Fed | Non-Coolant Through |
| Drill Length Class | Screw Machine Length |
| Finish - Machining | Bright |
| Primary Material Application | All Materials |
| Smallest Drill Bit Size | 1/16 in |
| Largest Drill Bit Size | 1/2 in |
| Number of Drill Bits | 29 |
| Material Grade - Machining | Heavy Duty |
| Material - Machining | High Speed Steel |
| Drill Bit Point Type | Split Point |
| Drill Bit Sizes Included | 11/32 in, 11/64 in, 1/16 in, 1/2 in, 13/32 in, 13/64 in, 1/4 in, 15/32 in, 15/64 in, 17/64 in, 1/8 in, 19/64 in, 21/64 in, 23/64 in, 25/64 in, 27/64 in, 29/64 in, 31/64 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 5/64 in, 7/16 in, 7/32 in, 7/64 in, 9/32 in |
| Aircraft Drill | Yes |
| Measurement System | Fractional Inch |
| Shank Type - Machining | Straight |
| Drill Bit Case Type | Metal Index |
| Diameter | 1/16 in, 5/64 in, 3/32 in, 7/64 in, 1/8 in, 9/64 in, 5/32 in, 11/64 in, 3/16 in, 13/64 in, 7/32 in, 15/64 in, 1/4 in, 17/64 in, 9/32 in, 19/64 in, 5/16 in, 21/64 in, 11/32 in, 23/64 in, 3/8 in, 25/64 in, 13/32 in, 27/64 in, 7/16 in, 29/64 in, 15/32 in, 31/64 in, 1/2 in |
| Package Quantity | 1 |
