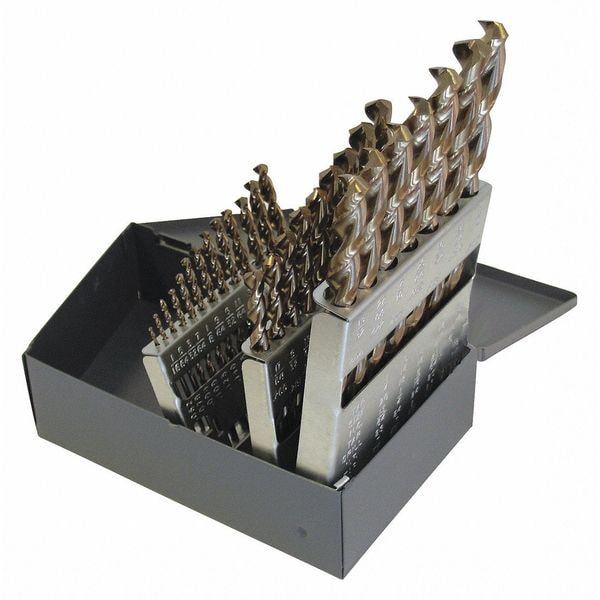

29PC Q-Cobalt Wide Land Parabolic Jobber Dril Set Cleveland 2075 Straw HSS-CO RHS/RHC 1/16-1/2x1/64
| Item | Jobber Drill Bit Set |
|---|---|
| Number of Pieces | 29 |
| Cutting Direction | Right Hand |
| Drill Bit Point Angle | 135 deg |
| Drill Bit Material | Cobalt |
| Includes | Metal Drill Index |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Size | 1/16 in to 1/2 in by 1/64 |
| Shank Dia. | 1/16 in to 1/2 in |
| Drill Bit Grouping | Drill Bit Set |
| Sizes Included | 1/16",5/64",3/32",7/64",1/8",9/64",5/32",11/64",3/16",13/64",7/32",15/64",1/4",17/64",9/32",19/64",5/16",21/64",11/32",23/64",3/8",25/64",13/32",27/64",7/16",29/64",15/32",31/64",1/2" |
| Standards | ASME B94.11M-1993 |
| Point Type | Split Point |
| List Number | 2075 |
| Depth x Dia. Ratio | 10 xD |
| Measurement System | Fractional Inch |
| Shank Type | Straight |
| Diameter | 0.266 |
| Drill Style | Jobber Drill |
| Shank Length | 1.25 |
| Flute Type | Parabolic |
| Left/Right Hand | Right |
| Shank Size | 0.266 |
| Coolant Fed | Non-Coolant Through |
| Drill Bit Point Type | Split Point |
| Shank Type - Machining | Straight |
| Largest Drill Bit Size | 1/2 in |
| Number of Drill Bits | 29 |
| Drill Bit Sizes Included | 1/2 in, 1/4 in, 1/8 in, 11/32 in, 11/64 in, 13/32 in, 13/64 in, 15/32 in, 15/64 in, 17/64 in, 19/64 in, 21/64 in, 23/64 in, 25/64 in, 27/64 in, 29/64 in, 3/16 in, 3/32 in, 3/8 in, 31/64 in, 5/16 in, 5/32 in, 5/64 in, 7/16 in, 7/32 in, 7/64 in, 9/32 in, 9/64 in |
| Material - Machining | Cobalt |
| Smallest Drill Bit Size | 1/16 in |
| Aircraft Drill | No |
| Drill Length Class | Length |
| Finish - Machining | Straw, Bronze |
| Primary Material Application | All Materials |
| Drill Bit Case Type | Metal Drill Index |
| Package Quantity | 1 |
