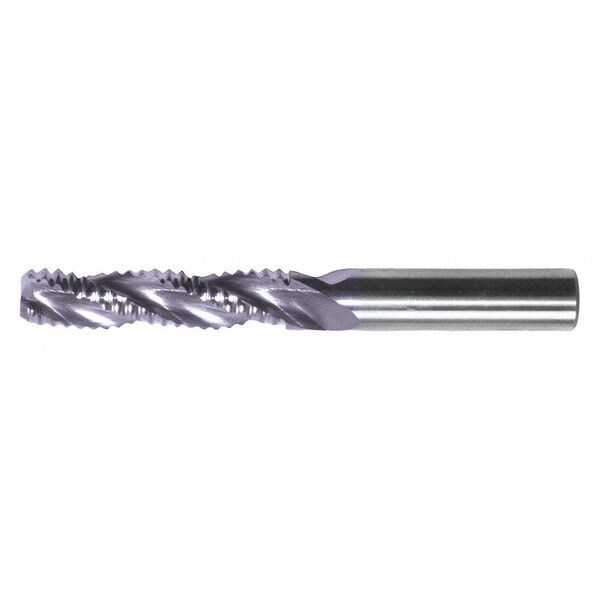

3-Flute Cobalt 8% Square Extra Coarse Roughing End Mill SE CC CTD RG9-TC TiCN 1x1x3x5-1/2
| Dimension Type | Fractional Inch |
|---|---|
| Milling Diameter | 1 in |
| End Mill Material | Cobalt |
| Number of Flutes | 3 |
| Length of Cut | 3 in |
| Single End/Double End | Single End |
| End Mill Cutting Type | Center Cutting |
| Grade | Heavy-Duty |
| Shank Dia. | 1 in |
| Overall Length | 5-1/2 in |
| Hardened (H) Compatibility | No |
| Non Ferrous (N) Compatibility | Yes |
| Corner Radius | 0 in |
| Helix Angle | 30 deg |
| Cast Iron (K) Compatibility | No |
| Cutting Direction | Right Hand |
| List Number | RG9-TC |
| Super Alloy (S) Compatibility | No |
| Steel (P) Compatibility | No |
| End Mill Style | Square |
| Shank Type | Weldon |
| Item | Square End Mill |
| Milling Dia. | 1 in |
| End Mill Application | Roughing |
| Finish | TiCN |
| Stainless (M) Compatibility | No |
| Neck Length | Not Applicable |
| Neck Dia. | Not Applicable |
| Measurement System | Fractional Inch |
| Material - Machining | Cobalt |
| Cutting Direction - Machining | Right Hand |
| Drilling Tool Configuration | Individual |
| Shank Type - Machining | Weldon Flat |
| Finish - Machining | TiCN |
| Material Grade - Machining | Heavy Duty |
| Primary Material Application ISO Code | N |
| Primary Material Application | Brass, Bronze, Copper, Aluminum, Magnesium |
| Chip-Breaker | Yes |
| Package Quantity | 1 |
