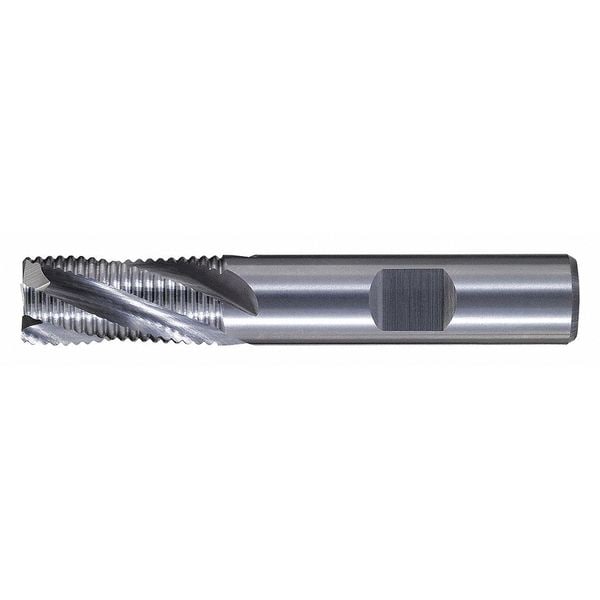

4-Flute Carbide HP Square Single Roughing End Mill CTD CEM-RS Bright 1/4x1/4x1/4x2
| Number of Flutes | 4 |
|---|---|
| End Mill Style | Square |
| Finish | Bright |
| Length of Cut | 3/8 in |
| End Mill Cutting Type | Center Cutting |
| Milling Diameter | 1/4 in |
| End Mill Material | Carbide |
| End Mill Application | Roughing |
| Dimension Type | Fractional Inch |
| Overall Length | 2 in |
| Cutting Direction | Right Hand |
| List Number | CEM-RS |
| Single End/Double End | Single End |
| Item | Square End Mill |
| Stainless (M) Compatibility | Yes |
| Milling Dia. | 1/4 in |
| Super Alloy (S) Compatibility | No |
| Shank Dia. | 1/4 in |
| Non Ferrous (N) Compatibility | No |
| Hardened (H) Compatibility | Yes |
| Cast Iron (K) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Grade | General Purpose |
| Cutting Direction - Machining | Right Hand |
| Material - Machining | Carbide |
| Drilling Tool Configuration | Individual |
| Measurement System | Fractional Inch |
| Shank Type - Machining | Weldon Flat |
| Neck Length | Not Applicable |
| Helix Angle | 45 deg |
| Neck Dia. | Not Applicable |
| Finish - Machining | Bright |
| Material Grade - Machining | General Purpose |
| Primary Material Application ISO Code | P |
| Primary Material Application | Steel |
| Chip-Breaker | Yes |
| Package Quantity | 1 |
