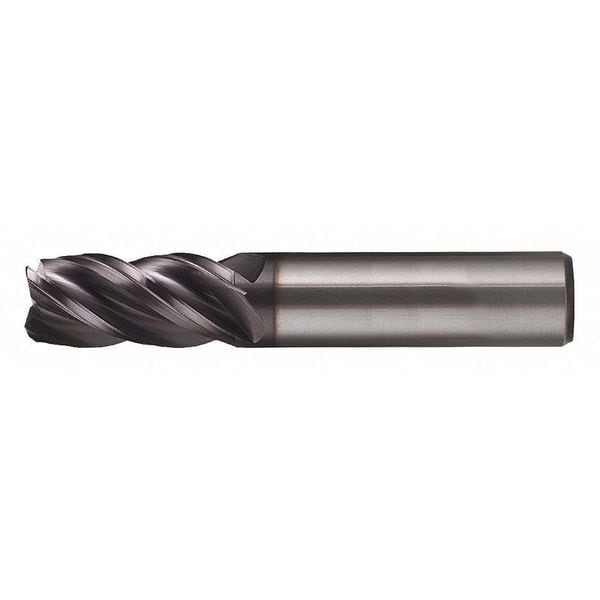

4-Flute Carbide HP VI Crn Rad Single EndMill Cleveland CEM-V-4R-TA AP/MAX 1/4x1/4x3/4x2-1/2x0.045CR
| Number of Flutes | 4 |
|---|---|
| End Mill Style | Corner Radius |
| Finish | TiAlN |
| Length of Cut | 3/4 in |
| End Mill Cutting Type | Center Cutting |
| Milling Diameter | 1/4 in |
| End Mill Material | Carbide |
| End Mill Application | Finishing |
| Dimension Type | Fractional Inch |
| Hardened (H) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| List Number | CEM-V-4R-TA |
| Corner Radius | 0.045 in |
| Super Alloy (S) Compatibility | Yes |
| Helix Angle | 38 deg |
| Steel (P) Compatibility | Yes |
| Item | Corner Radius End Mill |
| Cutting Direction | Right Hand |
| Single End/Double End | Single End |
| Overall Length | 2-1/2 in |
| Milling Dia. | 1/4 in |
| Grade | General Purpose |
| Shank Dia. | 1/4 in |
| Stainless (M) Compatibility | Yes |
| Material - Machining | Carbide |
| Cutting Direction - Machining | Right Hand |
| Drilling Tool Configuration | Individual |
| Finish - Machining | TiAlN |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| Measurement System | Fractional Inch |
| Shank Type - Machining | Straight |
| Material Grade - Machining | General Purpose |
| Primary Material Application ISO Code | P, M, S |
| Primary Material Application | Titanium, Nickel, Stainless Steel, Steel |
| Package Quantity | 1 |
