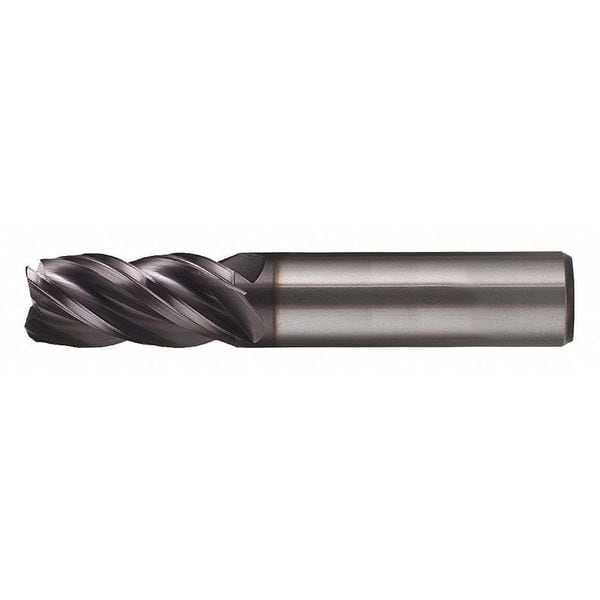

4-Flute Carbide HP VI CrnRadius Single End Mill Cleveland CEM-V-4R Bright 3/8"x3/8"x2"x4"x0.02CR
| Number of Flutes | 4 |
|---|---|
| End Mill Style | Corner Radius |
| Finish | Bright |
| Length of Cut | 2 in |
| End Mill Cutting Type | Center Cutting |
| Milling Diameter | 3/8 in |
| End Mill Material | Carbide |
| End Mill Application | Finishing |
| Dimension Type | Fractional Inch |
| Helix Angle | 38 deg |
| Corner Radius | 0.02 in |
| Grade | General Purpose |
| Overall Length | 4 in |
| Item | Corner Radius End Mill |
| Hardened (H) Compatibility | Yes |
| List Number | CEM-V-4R |
| Milling Dia. | 3/8 in |
| Cast Iron (K) Compatibility | No |
| Single End/Double End | Single End |
| Steel (P) Compatibility | Yes |
| Cutting Direction | Right Hand |
| Shank Dia. | 3/8 in |
| Non Ferrous (N) Compatibility | No |
| Stainless (M) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Cutting Direction - Machining | Right Hand |
| Material - Machining | Carbide |
| Neck Length | Not Applicable |
| Neck Dia. | Not Applicable |
| Drilling Tool Configuration | Individual |
| Shank Type - Machining | Straight |
| Finish - Machining | Bright |
| Measurement System | Fractional Inch |
| Material Grade - Machining | General Purpose |
| Primary Material Application ISO Code | P, M, S, H |
| Primary Material Application | Titanium, Nickel, Hardened Steel, Stainless Steel, Steel |
| Package Quantity | 1 |
