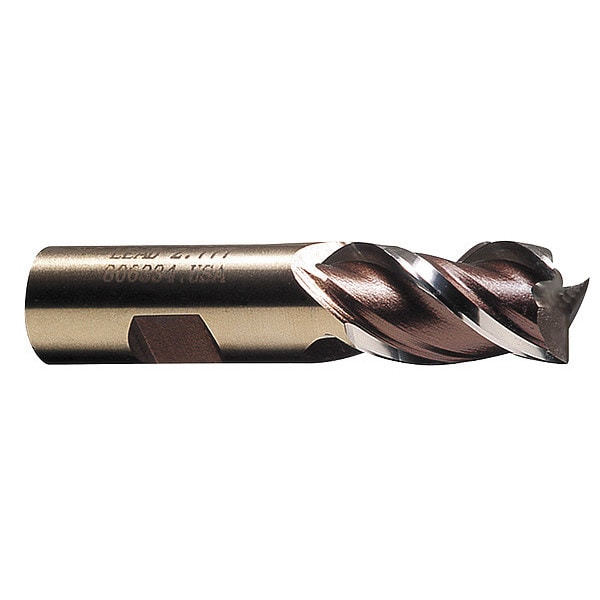

4-Flute Cobalt 8% Square Single End Multi-Flute CenterCut CTD HGC-4C Bright 1x1x2x4-1/2
| Milling Diameter | 1 in |
|---|---|
| Length of Cut | 2 in |
| Overall Length | 4-1/2 in |
| Shank Dia. | 1 in |
| Helix Angle | 30 deg |
| List Number | HGC-4C |
| End Mill Material | Cobalt |
| End Mill Application | Finishing |
| Cutting Direction | Right Hand |
| Finish | Bright |
| Number of Flutes | 4 |
| Grade | General Purpose |
| Item | Square End Mill |
| Milling Dia. | 1 in |
| End Mill Style | Square |
| Single End/Double End | Single End |
| Dimension Type | Fractional Inch |
| Corner Radius | 0 in |
| End Mill Cutting Type | Center Cutting |
| Material - Machining | Cobalt |
| Shank Type - Machining | Weldon Flat |
| Drilling Tool Configuration | Individual |
| Measurement System | Fractional Inch |
| Cutting Direction - Machining | Right Hand |
| Finish - Machining | Bright |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| Material Grade - Machining | General Purpose |
| Primary Material Application ISO Code | M, S |
| Primary Material Application | Nickel, Stainless Steel, Titanium |
| Chip-Breaker | No |
| Package Quantity | 1 |
