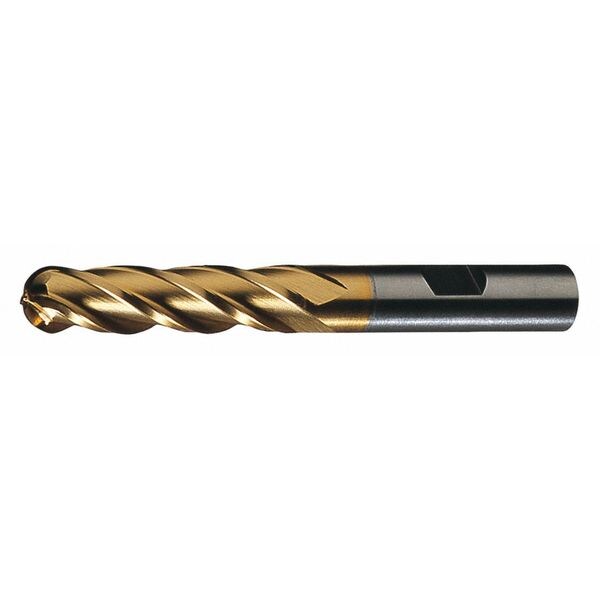

4-Flute HSS Ball Nose Single End MIll Cleveland HG-4B-TN TiN 1/2x1/2x3x5
| Dimension Type | Fractional Inch |
|---|---|
| Milling Diameter | 1/2 in |
| End Mill Material | High Speed Steel |
| Number of Flutes | 4 |
| Length of Cut | 3 in |
| Single End/Double End | Single End |
| End Mill Cutting Type | Center Cutting |
| Grade | General Purpose |
| Shank Dia. | 1/2 in |
| Helix Angle | 30 deg |
| End Mill Application | Finishing |
| Shank Type | Weldon |
| Cutting Direction | Right Hand |
| Hardened (H) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Overall Length | 5 in |
| End Mill Style | Ball Nose |
| Cast Iron (K) Compatibility | Yes |
| List Number | HG-4B-TN |
| Milling Dia. | 1/2 in |
| Finish | Tin |
| Stainless (M) Compatibility | No |
| Super Alloy (S) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Item | Ball End Mill |
| Corner Radius | 0 in |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| Chip-Breaker | No |
| Measurement System | Fractional Inch |
| Shank Type - Machining | Weldon Flat |
| Finish - Machining | TiN |
| Drilling Tool Configuration | Individual |
| Material Grade - Machining | General Purpose |
| Primary Material Application | Cast Iron, Steel |
| Coolant Fed | Non-Coolant Through |
| Primary Material Application ISO Code | P, K |
| Material - Machining | High Speed Steel |
| Spiral Direction | Right Hand |
| Material Applications | Cast Iron, Carbon Steel, Alloy Steel |
| Package Quantity | 1 |
