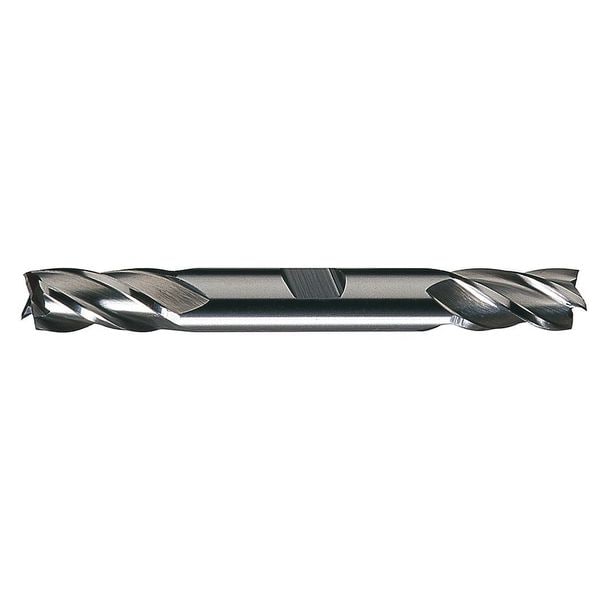

4-Flute HSS Center Cutting Square Double End Mill Cleveland HD-4C Bright 3/16x3/8x1/2x3-1/4
| Milling Diameter | 3/16 in |
|---|---|
| Number of Flutes | 4 |
| End Mill Style | Square |
| Finish | Bright |
| Length of Cut | 1/2 in |
| Item | Square End Mill |
| Single End/Double End | Double End |
| Corner Radius | 3-1/4 in |
| Milling Dia. | 3/16 in |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| Grade | General Purpose |
| End Mill Material | High Speed Steel |
| Helix Angle | 30 deg |
| Shank Dia. | 3/8 in |
| Overall Length | 3-1/4 in |
| Cutting Direction | Right Hand |
| Dimension Type | Fractional Inch |
| List Number | HD-4C |
| Measurement System | Fractional Inch |
| Drilling Tool Configuration | Individual |
| Material - Machining | High Speed Steel |
| Cutting Direction - Machining | Right Hand |
| Shank Type - Machining | Weldon Flat |
| Finish - Machining | Bright |
| Neck Length | Not Applicable |
| Neck Dia. | Not Applicable |
| Material Grade - Machining | General Purpose |
| Primary Material Application | Copper, Cast Iron, Steel, Magnesium |
| Primary Material Application ISO Code | P, K, N |
| Chip-Breaker | No |
| Package Quantity | 1 |
