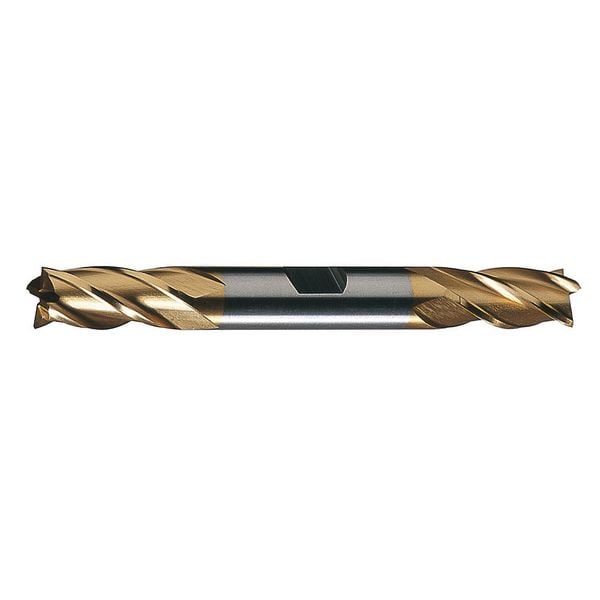

4-Flute HSS Center Cutting Square Double End MIll Cleveland HD-4C-TN TiN 5/32x3/8x7/16x3-1/8
| Milling Diameter | 5/32 in |
|---|---|
| Number of Flutes | 4 |
| End Mill Style | Square |
| Finish | Tin |
| Length of Cut | 7/16 in |
| Item | Square End Mill |
| Corner Radius | 3-1/8 in |
| Shank Dia. | 3/8 in |
| End Mill Material | High Speed Steel |
| List Number | HD-4C-TN |
| Dimension Type | Fractional Inch |
| Single End/Double End | Double End |
| Overall Length | 3-1/8 in |
| End Mill Application | Finishing |
| Milling Dia. | 5/32 in |
| Grade | General Purpose |
| End Mill Cutting Type | Center Cutting |
| Helix Angle | 30 deg |
| Cutting Direction | Right Hand |
| Measurement System | Fractional Inch |
| Shank Type - Machining | Weldon Flat |
| Material - Machining | High Speed Steel |
| Drilling Tool Configuration | Individual |
| Cutting Direction - Machining | Right Hand |
| Finish - Machining | TiN |
| Neck Dia. | Not Applicable |
| Neck Length | Not Applicable |
| Material Grade - Machining | General Purpose |
| Primary Material Application ISO Code | P, K |
| Primary Material Application | Cast Iron, Steel |
| Chip-Breaker | No |
| Package Quantity | 1 |
