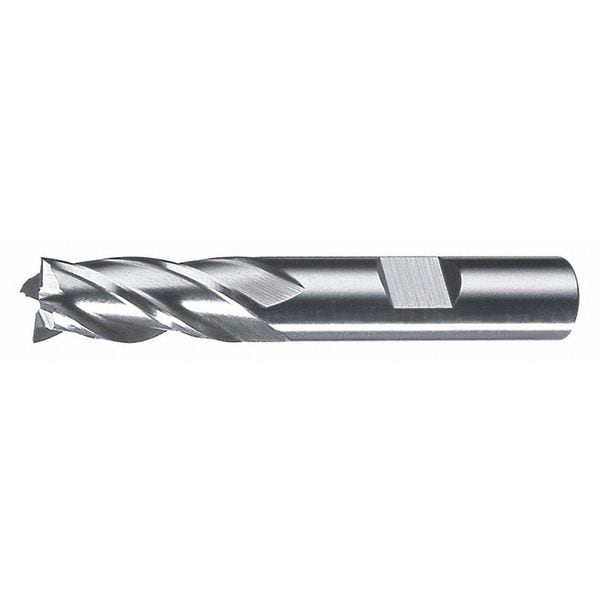

4-Flute HSS Center Cutting Square Single End Mill Cleveland HG-4MC Bright 11mmx3/8x1x2-11/16
| Dimension Type | Metric |
|---|---|
| Milling Diameter | 11 mm |
| End Mill Material | Steel |
| Number of Flutes | 4 |
| Length of Cut | 25.4 mm |
| Single End/Double End | Single End |
| End Mill Cutting Type | Center Cutting |
| Grade | General Purpose |
| Shank Dia. | 9.52 mm |
| Overall Length | 68.26 mm |
| Finish | Bright |
| Non Ferrous (N) Compatibility | No |
| List Number | HG-4MC |
| Stainless (M) Compatibility | No |
| End Mill Style | Square |
| Cast Iron (K) Compatibility | Yes |
| Cutting Direction | Right Hand |
| Steel (P) Compatibility | Yes |
| End Mill Application | Finishing |
| Corner Radius | 0 in |
| Super Alloy (S) Compatibility | No |
| Hardened (H) Compatibility | No |
| Item | Square End Mill |
| Helix Angle | 30 deg |
| Shank Type | Weldon |
| Milling Dia. | 11 mm |
| Neck Length | Not Applicable |
| Neck Dia. | Not Applicable |
| Drilling Tool Configuration | Individual |
| Material - Machining | High Speed Steel |
| Measurement System | Metric |
| Shank Type - Machining | Weldon Flat |
| Cutting Direction - Machining | Right Hand |
| Finish - Machining | Bright |
| Material Grade - Machining | General Purpose |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application ISO Code | P, K |
| Chip-Breaker | No |
| Package Quantity | 1 |
