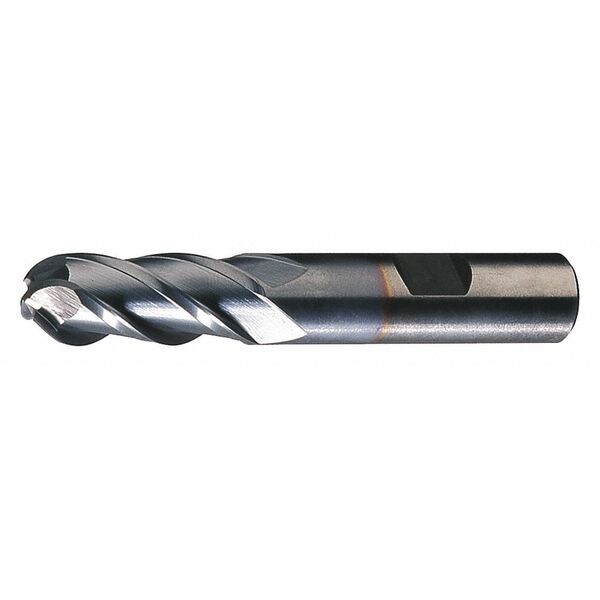

4-Flute PM+ HSS-E Ball Nose Single Finishing End Mill Cleveland PM-4B-TC TiCN 3/16x3/8x1/2x2-3/8
| Dimension Type | Fractional Inch |
|---|---|
| Milling Diameter | 3/16 in |
| End Mill Material | Powdered Metal |
| Number of Flutes | 4 |
| Length of Cut | 1/2 in |
| Single End/Double End | Single End |
| End Mill Cutting Type | Center Cutting |
| Grade | High Performance |
| Shank Dia. | 3/8 in |
| Helix Angle | 37 deg |
| Cast Iron (K) Compatibility | Yes |
| Corner Radius | 0 in |
| List Number | PM-4B |
| Non Ferrous (N) Compatibility | No |
| Shank Type | Weldon |
| Finish | Ticn |
| Stainless (M) Compatibility | Yes |
| End Mill Application | Finishing |
| Overall Length | 2.3 in |
| Milling Dia. | 3/16 in |
| Item | Ball End Mill |
| Steel (P) Compatibility | Yes |
| Hardened (H) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| End Mill Style | Ball Nose |
| Cutting Direction | Right Hand |
| Neck Length | Not Applicable |
| Shank Type - Machining | Weldon Flat |
| Chip-Breaker | No |
| Primary Material Application | All Materials |
| Material - Machining | Powdered Metal |
| Primary Material Application ISO Code | P, K, M, N, S, O |
| Drilling Tool Configuration | Individual |
| Coolant Fed | Non-Coolant Through |
| Finish - Machining | TiCN |
| Measurement System | Fractional Inch |
| Material Grade - Machining | High Performance |
| Package Quantity | 1 |
