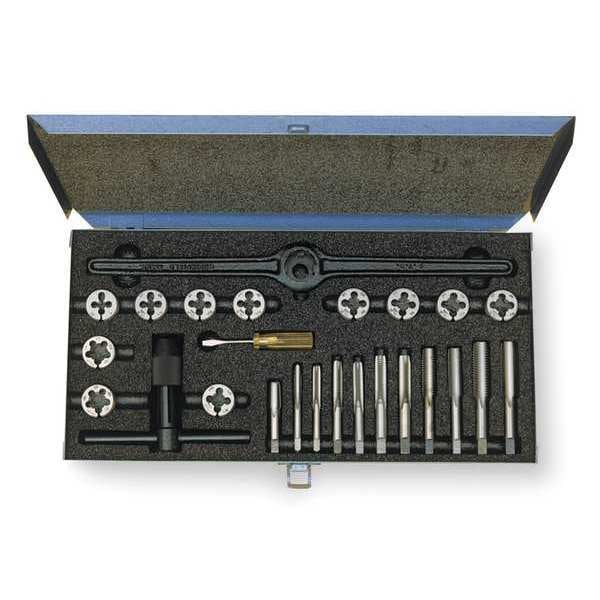

47PC HSSPlugHandTap & CarbonRoundAdj. Die Set Cle-Line 21 Sizes 1/4-20 To 1-14 UNC, UNF, UNS & NPT
| Item | Tap and Die Set |
|---|---|
| Sizes Included | 1/4"-20, 1/4"-28, 5/16"-18, 5/16"-24, 3/8"-16, 3/8"-24, 7/16"-14, 7/16"-20, 1/2"-13, 1/2"-20, 9/16"-12, 9/16"-18, 5/8"-11, 5/8"-18, 3/4"-10, 3/4"-16, 7/8"-9, 7/8"-14, 1"-8, 1"-14, 1/8"-27 NPT |
| Number of Pieces | 49 |
| Material | High Speed Steel |
| Thread Direction | Right Hand |
| Type | Fractional |
| Size Range | 1/4" to 1" |
| Thread Type | NPT, UNC, UNF, UNS |
| SAE or Metric | SAE |
| Includes | Tap, Die and Collet for Each Size, Steel Case with Foam Liner |
| Die Shape | Round |
| Cutting Sizes | 21 |
| Tap Dimension Type | Inch |
| Tap Chamfer | Plug, Taper |
| Die Type | Adjustable |
| Standards | ANSI |
| Tap Material | High Speed Steel |
| Finish | Mill |
| Left/Right Hand | Right Hand |
| Tap Wrench Number | #5, #7 |
| Size/Range | 1/4 to 1", 1/8" NPT |
| Die Material | High Speed Steel |
| Tap Finish | Bright (Uncoated) |
| Features | General Purpose Applications |
| Number of Flutes | 4 |
| Material - Machining | High Speed Steel |
| Secondary Material Application | Stainless Steel |
| Tap Type | Hand Tap |
| Tap Shank Dia. | Table 302 |
| Min. Tap Thread Size | 1/8"-27 |
| Tap Overall Length | Table 302 |
| Class of Fit | 2B |
| Finish - Machining | Bright (Uncoated) |
| Max. Die Thread Size | 1"-14 |
| Number Of Taps | 21 |
| Primary Material Application ISO Code | M, H, K, N, P, S |
| Die Material Grade | Carbon Steel |
| Tap Sizes Included | 1 in -8 NC, 1'-14 NS, 1/2 in -13 NC, 1/2 in -20 NF, 1/4 in -20 NC, 1/4 in -28 NF, 1/8 in -27 NPT, 3/4 in -10 NC, 3/4 in -16 NF, 3/8 in -16 NC, 3/8 in -24 NF, 5/16 in -18 NC, 5/16 in -24 NF, 5/8 in -11 NC, 5/8 in -18 NF, 7/16 in -14 NC, 7/16 in -20 NF, 7/8 in -14 NF, 7/8 in -9 NC, 9/16 in -12 NC, 9/16 in -18 NF |
| Secondary Material Application ISO Code | M |
| 55% Thread Drill Size | #3, 1/2 in, 10.20mm, 11.30mm, 11.80mm, 11/32 in, 13.25mm, 14.20mm, 14.80mm, 15/16 in, 17.20mm, 17.90mm, 20.90mm, 29/32 in, 5.70mm, 51/64 in, 8.40mm, 9/32 in, I, W |
| 65% Thread Drill Size | #5, 10.00mm, 11.00mm, 11.60mm, 12.50mm, 13.90mm, 13/16 in, 16.90mm, 17.70mm, 17/64 in, 23.60mm, 25/32 in, 33/64 in, 37/64 in, 57/64 in, 7/32 in, J, P, R, V |
| Max. Tap Thread Size | 1"-14 |
| Primary Material Application | All Materials |
| Spiral Direction | Neutral |
| Powdered Metal Base Material | No |
| Number of Dies in Set | 21 |
| Extension Tap | No |
| Coolant Fed | Non-Coolant Through |
| 75% Thread Drill Size | #7, 11.40mm, 12.20mm, 12.90mm, 13.60mm, 14.50mm, 16.50mm, 17.50mm, 19.50mm, 20.40mm, 22.25mm, 23.30mm, 27/64 in, 5.45mm, 5/16 in, 8.50mm, 9.95mm, F, I, U |
| Case Type | Metal |
| Helix Angle | 0 Degrees |
| Extended Shank | No |
| Die Series | 610 |
| Thread Standard | UNC, NPT, UNF, UNS |
| Thread Limit | H3, H4 |
| Measurement System | Fractional Inch |
| Die Finish | Bright (Uncoated) |
| Tap Shank Standard | Table 302 |
| Threads per Inch | 8, 9, 10, 11, 12, 13, 14, 16, 18, 20, 24, 27, 28 |
| Dimensions Standard | Fractional Inch |
| Die Thread Sizes Included | 1'-14 NS, 1"-8 NC, 1/2"-13 NC, 1/2"-20 NF, 1/4"-20 NC, 1/4"-28 NF, 1/8"-27 NPT, 3/4"-10 NC, 3/4"-16 NF, 3/8"-16 NC, 3/8"-24 NF, 5/16"-18 NC, 5/16"-24 NF, 5/8"-11 NC, 5/8"-18 NF, 7/16"-14 NC, 7/16"-20 NF, 7/8"-14 NF, 7/8"-9 NC, 9/16"-12 NC, 9/16"-18 NF |
| Tap Series | 411 |
| Extended Neck | No |
| Thread Sizes Included | 1'-14 NS, 1"-8 NC, 1/2"-13 NC, 1/2"-20 NF, 1/4"-20 NC, 1/4"-28 NF, 1/8"-27 NPT, 3/4"-10 NC, 3/4"-16 NF, 3/8"-16 NC, 3/8"-24 NF, 5/16"-18 NC, 5/16"-24 NF, 5/8"-11 NC, 5/8"-18 NF, 7/16"-14 NC, 7/16"-20 NF, 7/8"-14 NF, 7/8"-9 NC, 9/16"-12 NC, 9/16"-18 NF |
| Min. Bore Dia. | 1/8 in -27 NPT |
| Tap Material Grade | M2 |
| Package Quantity | 1 |
