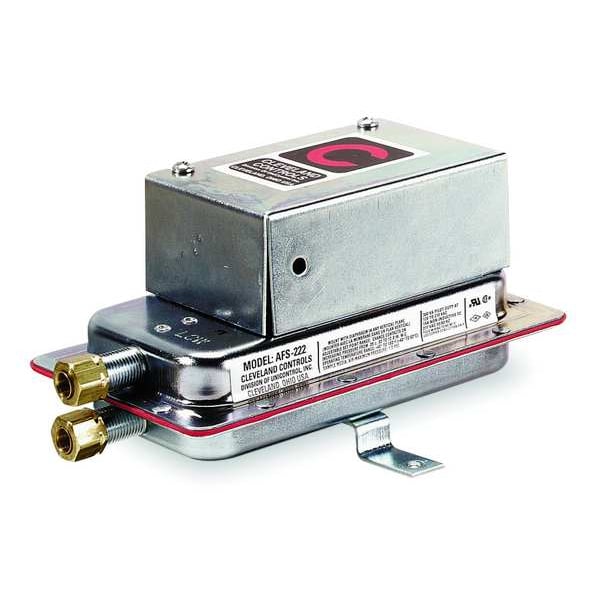

Air Sensing Switch, 300 VA Pilot Duty, 3 1/4 in W
| Electrical Rating | 15 A Non-Inductive to 277V AC, 300 VA Pilot Duty @ 115 to 277V AC |
|---|---|
| Width (In.) | 3-1/4 |
| Features | Adjustable Set Point Range as Low as 0.05 in to 12.0 in wc, Compact Size, Wide Operating Temperature Range, Reliability, Long Life and Proven Ability to Withstand High Shock and Vibration Condition |
| Pressure Setting Range (In. WC) | 0.05 to 12 |
| Application | Energy Management, HVAC |
| Agency Compliance | CE and CSA Certified, UL listed |
| Operating Temp. Range (F) | -40 to 180 |
| Type | HVAC/General Purpose |
| Depth (In.) | 3-1/4 |
| Includes | (2) Slip-On Tubing Adapters, Mounting Screws |
| Switch Type | SPDT |
| Height (In.) | 6-1/8 |
| Item | Air Sensing Switch |
| Differential (In. WC) | 0.02 to 0.8 |
| Sample Line Connector | Integral Compression |
| Function | Senses Positive, Negative or Differential Air Pressure or When Extreme Low Temperature or Pressure is a Critical Factor |
| Pressure Setpoint Type | Adjustable |
| Maximum Pressure Setting | 12 in wc |
| Maximum Operating Temperature | 180 deg F |
| Sample Line Connector Type | Integral Compression |
| Mounting Orientation | Vertical |
| Sample Line Connection Size | 1/4 in |
| Housing Material | Steel |
| Mounting Hole Diameter | 3/16 in |
| Minimum Differential Pressure Setting | 0.02 in wc |
| Contact Form | SPDT |
| Standards | CSA Certified, FM, UL Listed |
| Minimum Operating Temperature | -40 deg F |
| Overall Width | 3-1/4 in |
| Product Type | Air Pressure Switch |
| Overall Height | 6-1/8 in |
| Overall Depth | 3-1/4 in |
| Electrical Connection Type | Hardwired |
| Pressure Type | Differential, Negative, Positive |
| Maximum Differential Pressure Setting | 0.8 in wc |
| Mounting Hole Center to Center Distance | 3-7/8 in |
| Number of Switches | 1 |
| Housing Type | Conduit Box |
| Reset Type | Automatic Reset |
| Input Voltage | 277V AC |
| Minimum Pressure Setting | 0.05 in wc |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
