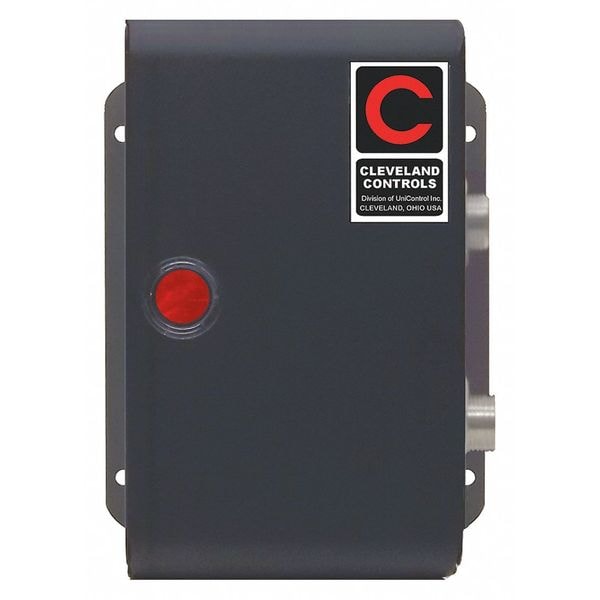

AirSwitch .05-12", WC, SPDT, AFS-952
| Item | Air Pressure Switch |
|---|---|
| Application | Commercial HVAC, Industrial HVAC |
| Electrical Rating | 10 A Non-Inductive 0 to 120V AC, 720 VA Pilot Duty @ 230V AC |
| Maximum Differential Pressure Setting | 0.8 in wc |
| Overall Depth | 3-9/16 in |
| Mounting Orientation | Vertical |
| Pressure Type | Differential, Negative, Positive |
| Minimum Differential Pressure Setting | 0.02 in wc |
| Minimum Pressure Setting | 0.03 in wc |
| Overall Width | 5-7/8 in |
| Number of Switches | 1 |
| Sample Line Connection Size | 1/4 in |
| Housing Material | Steel |
| Electrical Connection Type | Hardwired |
| Housing Type | NEMA-1 Enclosure |
| Maximum Operating Temperature | 130 deg F |
| Sample Line Connector Type | NPT |
| Minimum Operating Temperature | 0 deg F |
| Product Type | Switch |
| Input Voltage | 120V AC |
| Contact Form | SPDT |
| Reset Type | Automatic Reset |
| Pressure Setpoint Type | Adjustable |
| Maximum Pressure Setting | 12 in wc |
| Overall Height | 8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
