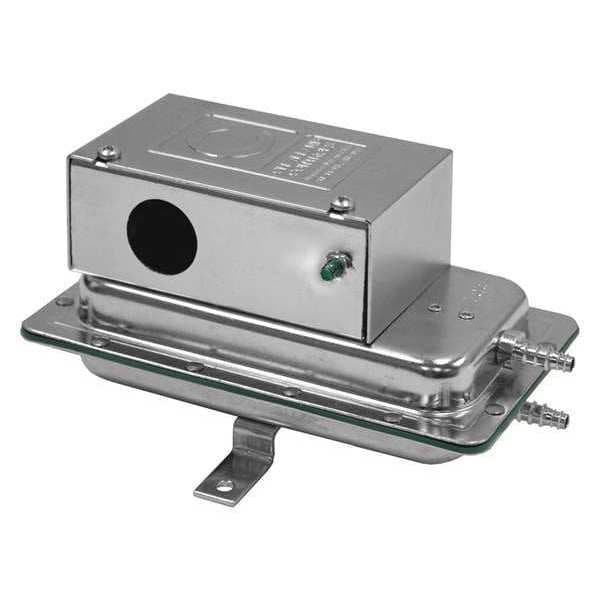

AirSwitch .05", WC, PR-V SPDT, FS-751-112
| Item | Air Pressure Switch |
|---|---|
| Application | Energy Management, HVAC |
| Electrical Rating | 15 A Non-Inductive to 277V AC, 300 VA Pilot Duty @ 115 to 277V AC |
| Overall Depth | 3-1/4 in |
| Product Type | Air Flow Switch |
| Overall Width | 3-1/4 in |
| Housing Type | Conduit Box |
| Maximum Operating Temperature | 180 deg F |
| Sample Line Connection Size | 1/4 in, 1/8 in |
| Standards | CSA Certified, UL Listed |
| Number of Switches | 1 |
| Maximum Pressure Setting | 0.05 in wc |
| Pressure Setpoint Type | Fixed |
| Contact Form | SPDT |
| Reset Type | Automatic Reset |
| Minimum Pressure Setting | Not Applicable |
| Minimum Differential Pressure Setting | 0.02 in wc |
| Minimum Operating Temperature | -40 deg F |
| Housing Material | Steel |
| Electrical Connection Type | Hardwired |
| Input Voltage | 277V AC |
| Pressure Type | Differential, Negative, Positive |
| Maximum Pressure Rating | 0.05 in wc |
| Mounting Orientation | Vertical |
| Sample Line Connector Type | Barb |
| Overall Height | 6-1/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
