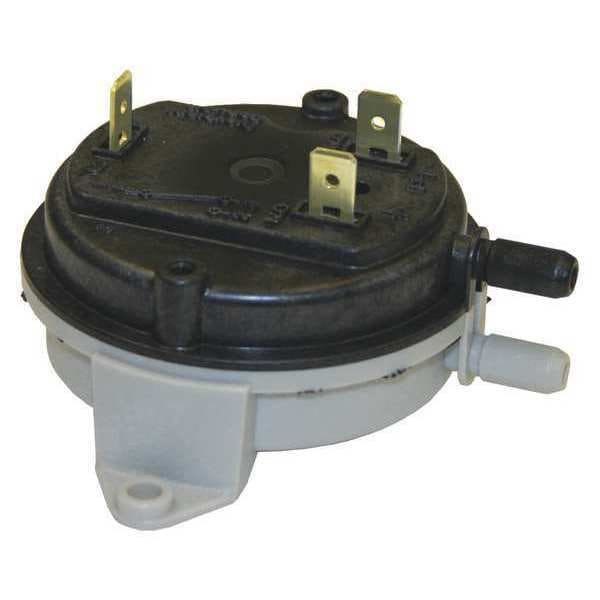

AirSwitch .1-10", WC, SPDT, NS2-0000-00
| Item | Air Pressure Switch |
|---|---|
| Electrical Rating | 1/10 hp @ 120 to 277V AC, 125 VA Pilot Duty @ 120V AC, 28 VA Pilot Duty @ 24V AC |
| Application | HVAC |
| Reset Type | Automatic Reset |
| Maximum Pressure Rating | 14 in wc |
| Sample Line Connection Size | 3/16 in |
| Overall Height | 3-1/16 in |
| Maximum Pressure Setting | 10 in wc |
| Electrical Connection Type | Hardwired |
| Housing Material | Plastic |
| Pressure Type | Differential, Negative, Positive |
| Standards | CE Certified, CSA Certified, cUL Listed, UL Listed |
| Minimum Differential Pressure Setting | 0.04 in wc |
| Pressure Setpoint Type | Adjustable |
| Maximum Operating Temperature | 190 deg F |
| Input Voltage | 277V AC |
| Number of Switches | 1 |
| Contact Form | SPDT |
| Mounting Orientation | Vertical |
| Overall Depth | 1-11/16 in |
| Overall Width | 3-7/16 in |
| Minimum Pressure Setting | 0.1 in wc |
| Minimum Operating Temperature | -40 deg F |
| Housing Type | Open Mounted |
| Maximum Differential Pressure Setting | 0.09 in wc |
| Sample Line Connector Type | Push-On |
| Product Type | Pressure Switch |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
