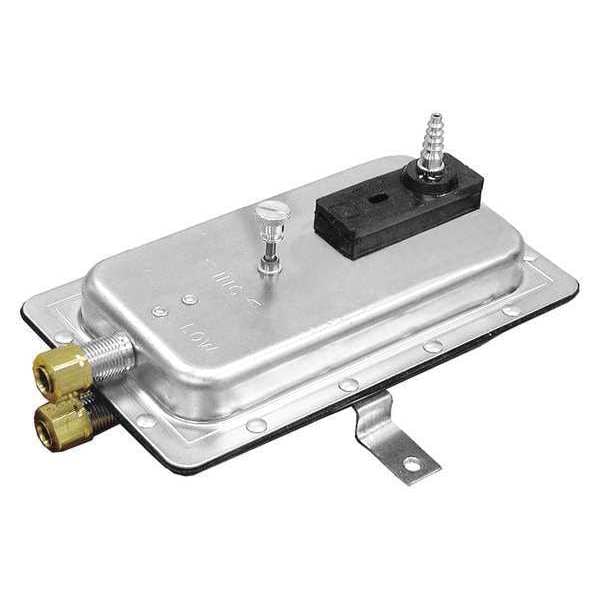

AirSwitch .15-12", WC, Pneu., PAS-2200
| Item | Air Pressure Switch |
|---|---|
| Application | Energy Management, HVAC |
| Electrical Rating | Not Applicable |
| Product Type | Air Pressure Switch |
| Mounting Hole Diameter | 3/16 in |
| Maximum Pressure Setting | 2 in wc |
| Overall Depth | 2-13/16 in |
| Housing Type | Open Mounted |
| Electrical Connection Type | Not Applicable |
| Sample Line Connection Size | 1/4 in |
| Pressure Setpoint Type | Adjustable |
| Maximum Pressure Rating | 1 psi |
| Minimum Differential Pressure Setting | 0.02 in wc |
| Reset Type | Not Applicable |
| Minimum Operating Temperature | 0 deg F |
| Maximum Differential Pressure Setting | 0.8 in wc |
| Maximum Operating Temperature | 135 deg F |
| Contact Form | Not Applicable |
| Minimum Pressure Setting | 0.15 in wc |
| Sample Line Connector Type | Push-On |
| Mounting Orientation | Vertical |
| Housing Material | Steel |
| Mounting Hole Center to Center Distance | 3-7/8 in |
| Input Voltage | Not Applicable |
| Overall Width | 3-1/4 in |
| Pressure Type | Differential |
| Overall Height | 6-1/8 in |
| Number of Switches | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
