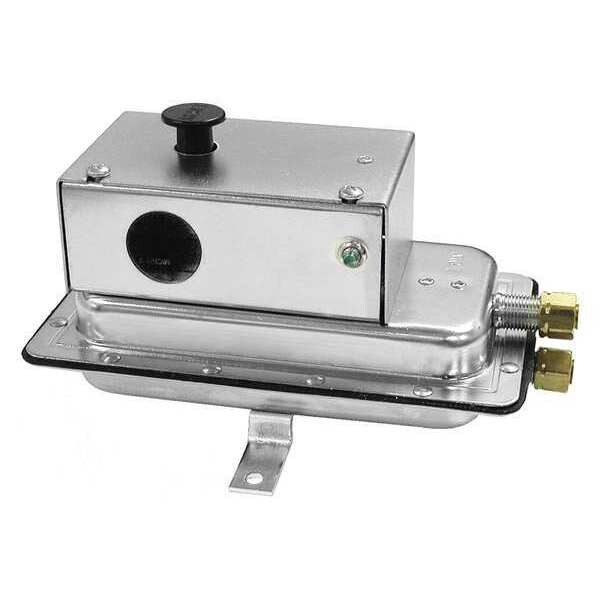

AirSwitch .25-12", WC, SPDT, AFS-305
| Item | Air Pressure Switch |
|---|---|
| Application | Energy Management, HVAC |
| Electrical Rating | 1/2 A @ 125V DC, 1/2 hp @ 250V AC, 1/4 A @ 250V DC, 1/4 hp @ 125V AC, 15 A @ 125/250/277V AC, 60 Hz |
| Overall Height | 6-1/8 in |
| Minimum Differential Pressure Setting | 0.02 in wc |
| Electrical Connection Type | Hardwired |
| Mounting Hole Diameter | 3/16 in |
| Overall Width | 3-1/4 in |
| Maximum Pressure Setting | 12 in wc |
| Housing Type | Conduit Box |
| Mounting Orientation | Vertical |
| Minimum Operating Temperature | -40 deg F |
| Reset Type | Manual Reset |
| Maximum Differential Pressure Setting | 0.8 in wc |
| Housing Material | Steel |
| Product Type | Air Pressure Switch |
| Mounting Hole Center to Center Distance | 3-7/8 in |
| Pressure Type | Differential, Negative, Positive |
| Maximum Operating Temperature | 180 deg F |
| Number of Switches | 1 |
| Sample Line Connector Type | Integral Compression |
| Overall Depth | 3-9/16 in |
| Input Voltage | 125V AC, 250V AC, 277V AC |
| Maximum Pressure Rating | 0.5 psi |
| Sample Line Connection Size | 1/4 in |
| Pressure Setpoint Type | Adjustable |
| Contact Form | SPDT |
| Minimum Pressure Setting | 0.25 in wc |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
